How to Proceed With Troubleshooting

HOW TO PROCEED WITH TROUBLESHOOTING

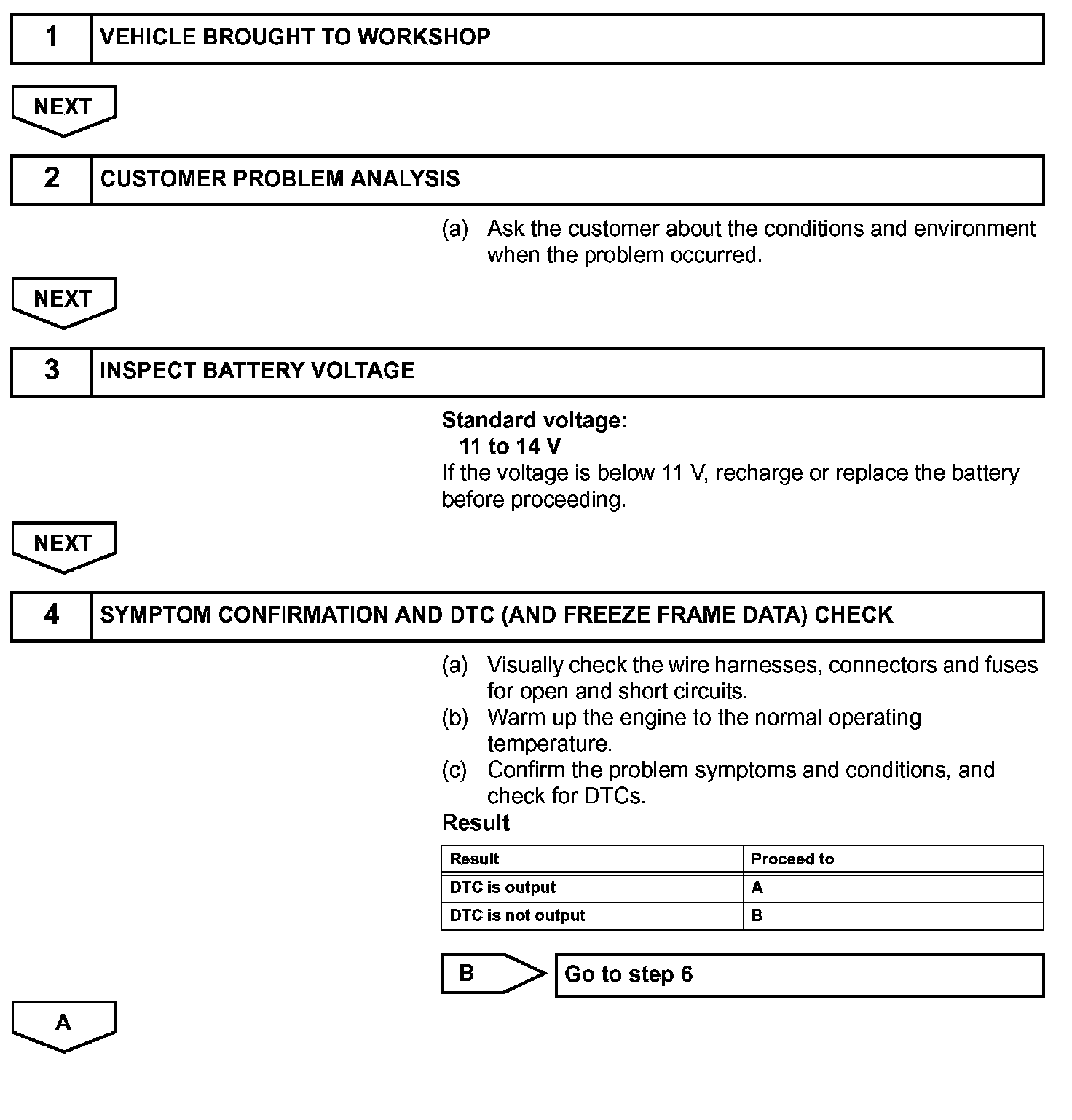

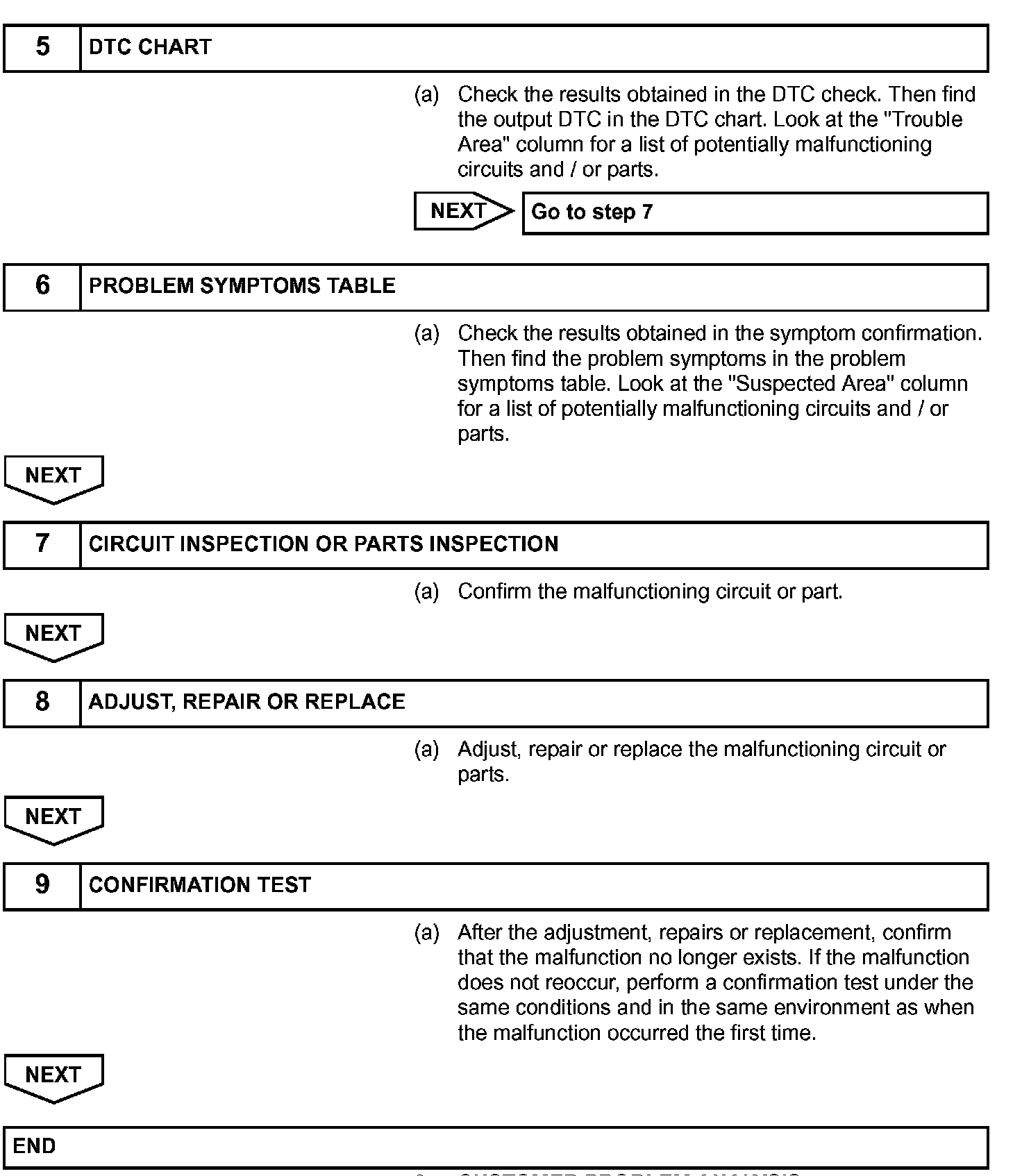

OPERATION FLOW









HINT: Perform troubleshooting in accordance with the procedures given. The given is an outline of basic troubleshooting procedures. Confirm the troubleshooting procedures for the circuit you are working on before beginning troubleshooting.
