Navigation Antenna: Components

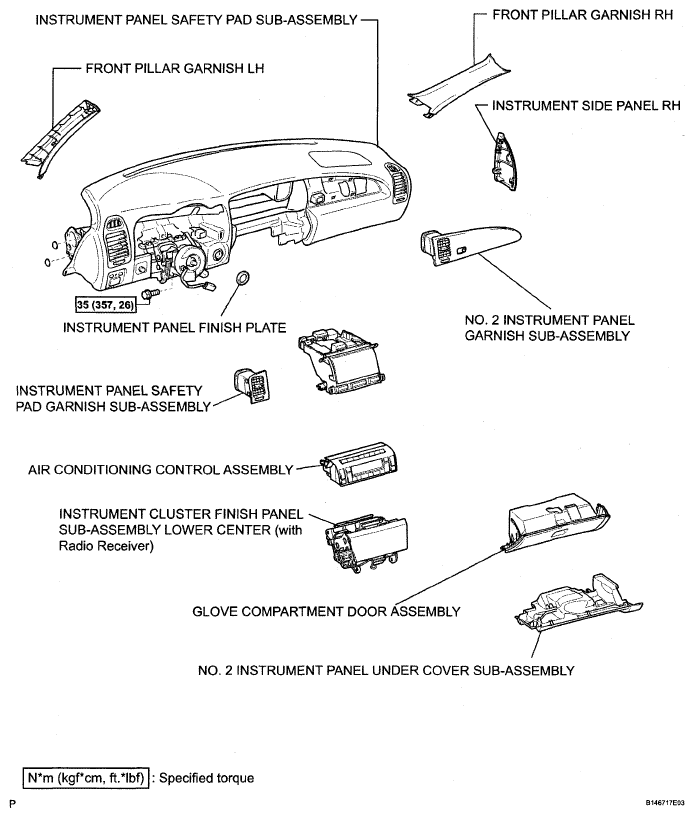

Fig 1: Navigation Antenna Replacement Components With Torque Specifications (1 Of 5)
G05293374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

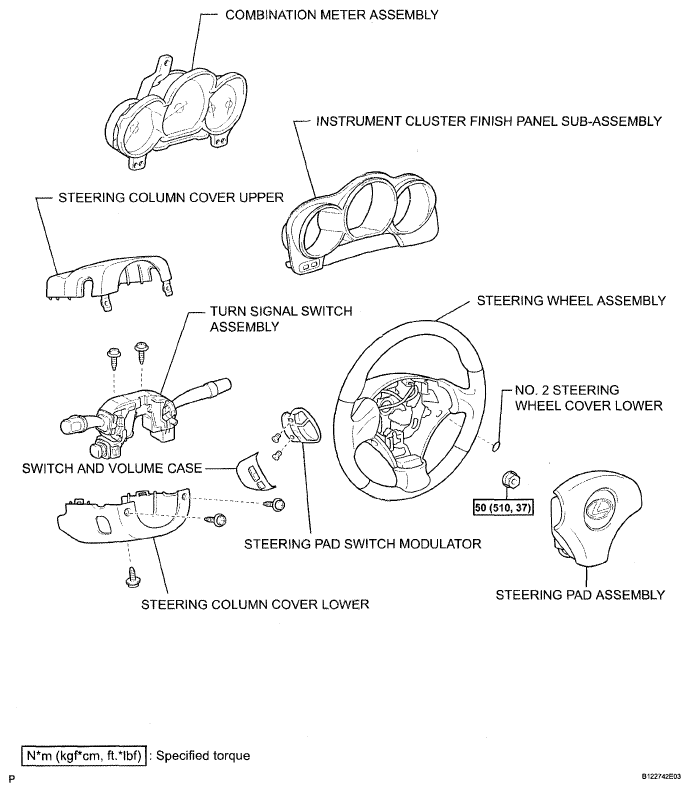

Fig 2: Navigation Antenna Replacement Components With Torque Specifications (2 Of 5)
G05293375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

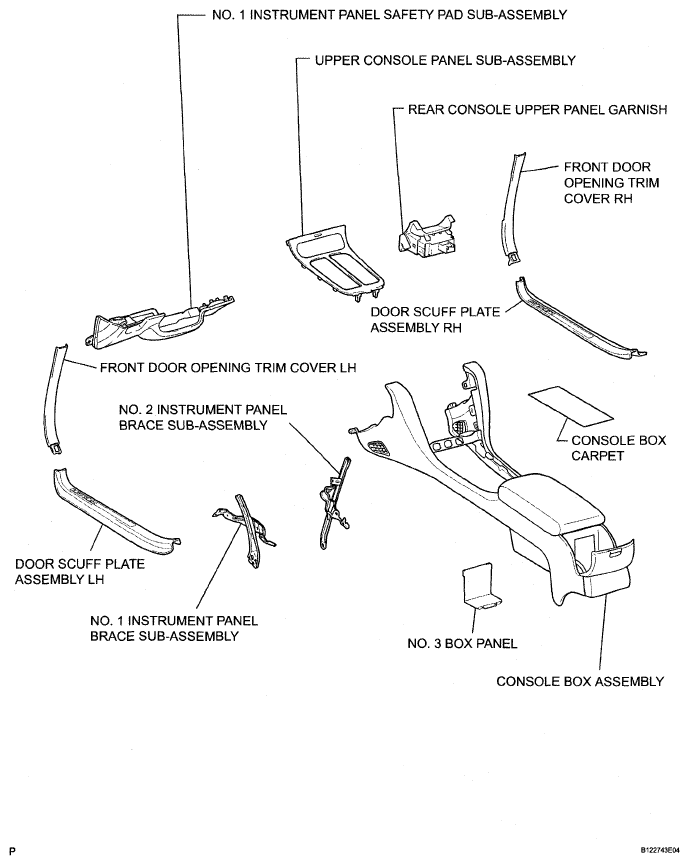

Fig 3: Identifying Navigation Antenna Components (3 Of 5)
G05293376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

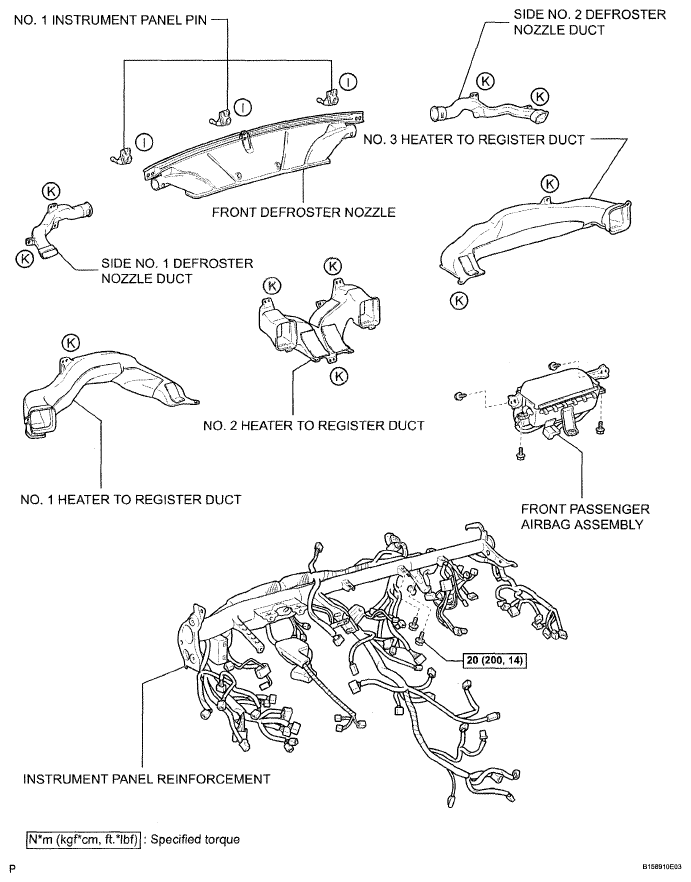

Fig 4: Navigation Antenna Replacement Components With Torque Specifications (4 Of 5)
G05293377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

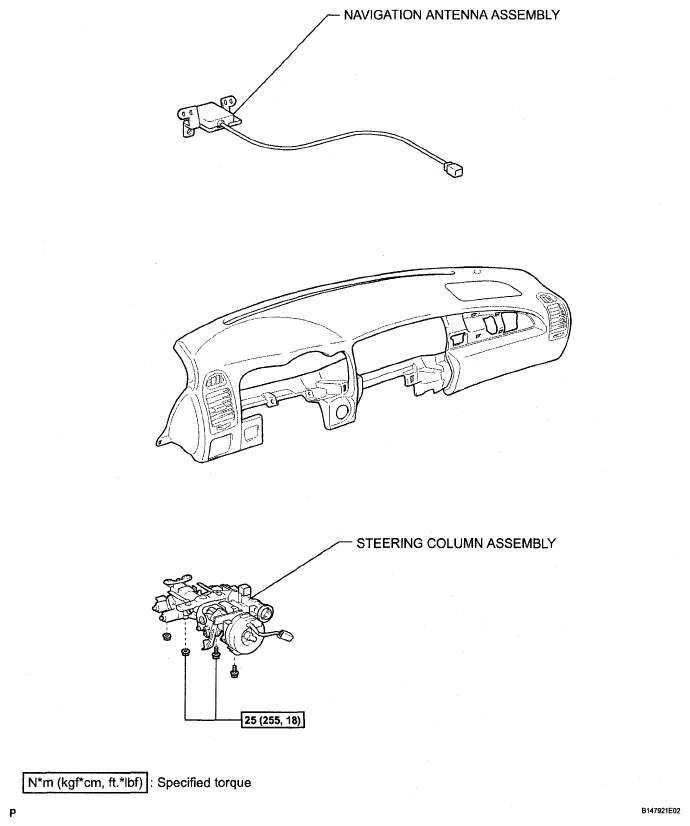

Fig 5: Navigation Antenna Replacement Components With Torque Specifications (5 Of 5)
G05293378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
