Door Control Switch: Inspection

  1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
    1. Measure the resistance of the switch.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Door Lock Switch Condition Specified Condition
      8-10 Lock Below 1 Ω
      8-10 Free 10 kΩ or higher
      10-18 Unlock Below 1 Ω
      10-18 Free 10 kΩ or higher

      If the result is not as specified, replace the switch assembly.

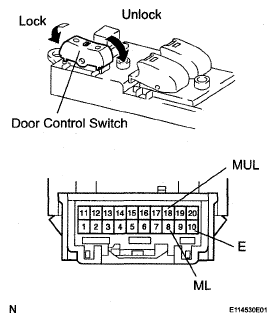

      Fig 1: Identifying Power Window Regulator Master Switch Assembly Connector Terminals
      G05292962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT DOOR CONTROL SWITCH ASSEMBLY
    1. Measure the resistance of the switch.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Door Lock Switch Condition Specified Condition
      2-3 Lock Below 1 Ω
      2-3 Free 10 kΩ or higher
      1-2 Unlock Below 1 Ω
      1-2 Free 10 kΩ or higher

      If the result is not as specified, replace the switch assembly.

      Fig 2: Identifying Door Control Switch Assembly Connector Terminals
      G05292963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
