Inspection Procedure
- READ VALUE OF INTELLIGENT TESTER (UNLOCK WARNING SWITCH)
- Check the DATA LIST for proper functioning of the unlock warning switch.
Transponder key ECU:
DATA LISTItem Measurement Item 1 Display (Range) Normal Condition Diagnostic Note KEY SW Key unlock warning switch signal / ON or OFF ON: Key is in ignition key cylinder
OFF: No key is in ignition key cylinder- OK: "ON" (Key is in ignition key cylinder) appears on the screen.
NG: Go to step 6
OK: Go to Next Step
- Check the DATA LIST for proper functioning of the unlock warning switch.
- READ VALUE OF INTELLIGENT TESTER (COURTESY SWITCH)
- Check the DATA LIST for proper functioning of the courtesy switch.
Multiplex network front door ECU LH:
DATA LISTItem Measurement Item / Display (Range) Normal Condition Diagnostic Note COURTESY SW Door courtesy switch signal / ON or OFF ON: Door is open
OFF; Door is closed-
OK: REPLACE MULTIPLEX NETWORK FRONT DOOR ECU LH
NG: Go to Next Step
- Check the DATA LIST for proper functioning of the courtesy switch.

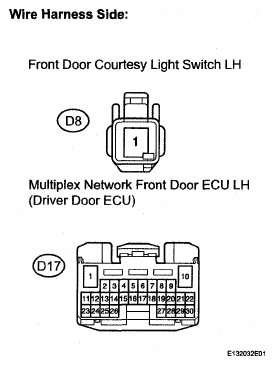

- CHECK WIRE HARNESS (DOOR COURTESY LIGHT - DOOR ECU)
- Disconnect the D8 switch connector.
- Disconnect the D17 ECU connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Specified Condition D8-1 (+) - D17-27 (CTY) Below 1 Ω D8-1 (+) - Body ground 10 kΩ or higher D17-27 (CTY) - Body ground 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to Next Step
- INSPECT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Measure the resistance of the switch.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Switch Condition Specified Condition 1-Body ground Not pushed (ON) Below 1 Ω 1- Body ground Pushed (OFF) 10 kΩ or higher
NG: REPLACE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH
OK: REPLACE MULTIPLEX NETWORK FRONT DOOR ECU LH
- Measure the resistance of the switch.
- INSPECT UNLOCK WARNING SWITCH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Remove the unlock warning switch.
- Measure the resistance of the switch.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Switch Condition Specified Condition 1-2 Not pushed 10 kΩ or higher 1-2 Pushed Below 1 Ω
NG: REPLACE UNLOCK WARNING SWITCH ASSEMBLY
OK: Go to Next Step

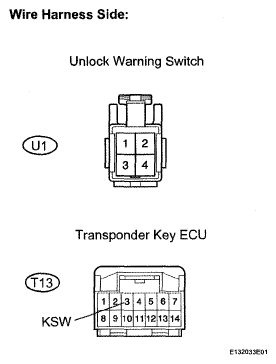

- CHECK WIRE HARNESS (SWITCH - ECU)
- Disconnect the U1 switch connector.
- Disconnect the T13 ECU connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Specified Condition U1-1 - Body ground Below 1 Ω U1-1 - T13-3 (KSW) Below 1 Ω
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE TRANSPONDER KEY ECU
