Door Lock
>>
Power Door Lock Control System
>>
Key Lock-in Prevention Function does not Work Properly
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Key Lock-in Prevention Function does not Work Properly: Wiring Diagram

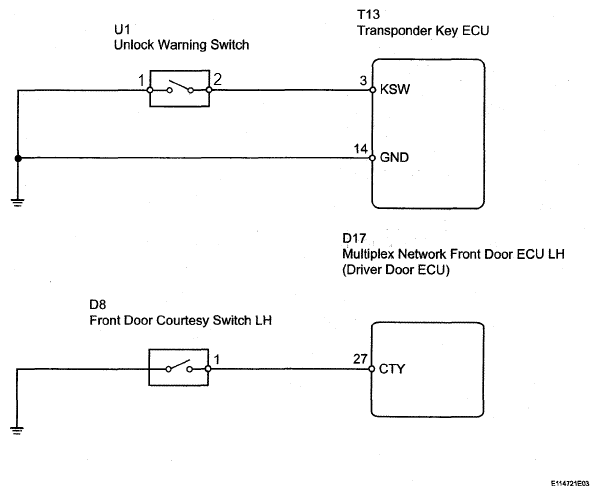

Fig 1: Key Lock-In Prevention Function Does Not Work Properly - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
