System Diagram

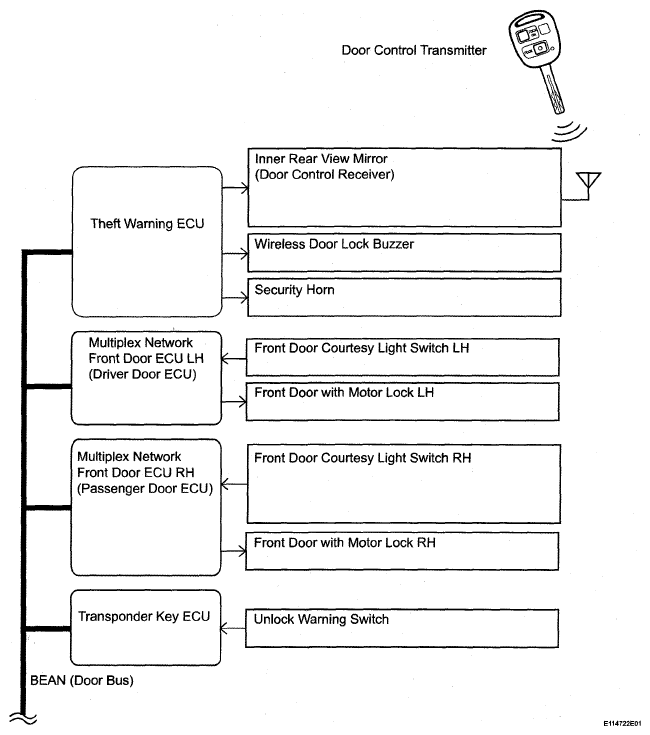

Fig 1: Wireless Door Lock Control System Diagram (1 Of 2)
G05292898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

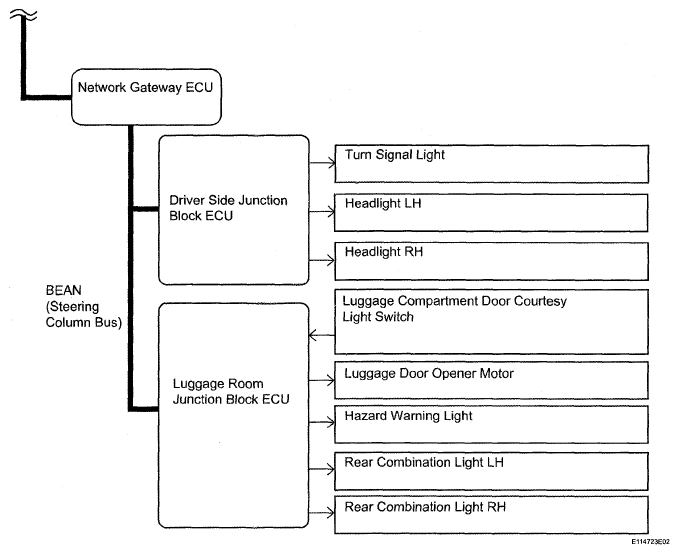

Fig 2: Wireless Door Lock Control System Diagram (2 Of 2)
G05292899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
