Roof Headlining: Components

Fig 1: Identifying Roof Headlining Interior Components (1 Of 2)
G05293955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

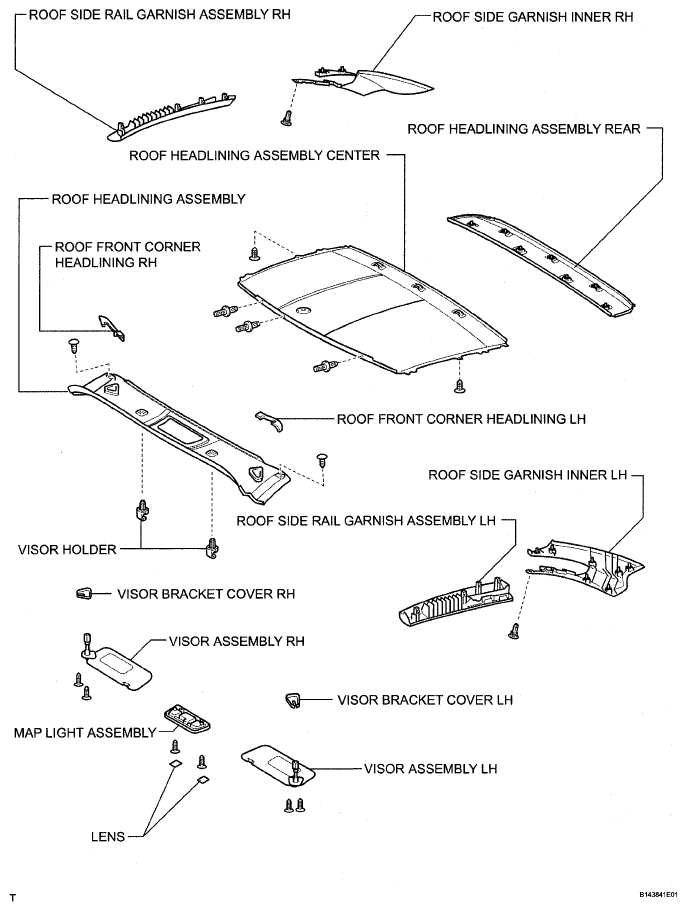

Fig 2: Identifying Roof Headlining Interior Components (2 Of 2)
G05293956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
