Inspection Procedure

1. Check that the A/C switch can operate the A/C normally.

   OK: A/C switch can operate the A/C normally.

OK: REPLACE A/C AMPLIFIER ASSEMBLY

NG: Go to next step.

1. Disconnect the A10 amplifier connector.
   Fig 1: Identifying A10 Amplifier Connectors Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage and resistance of the wire harness side connector.

   Standard voltage

   VOLTAGE SPECIFICATION



   Tester Connection	Specified Condition
   A10-8 (+B) - Body ground	10 to 14 V

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   A10-14 (GND) - Body ground	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step.

1. Disconnect the A9 and A10 amplifier connectors.
2. Disconnect the P6 ECU connector.

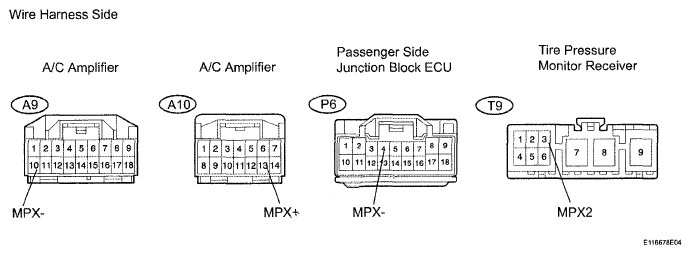

   Fig 2: Identifying A9 And A10 Amplifier Connectors And P6 ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the T9 receiver connector.
4. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   A10-13 (MPX+) - P6-4 (MPX-)	Below 1 Ω
   A9-10 (MPX-) - T9-3 (MPX2)	Below 1 Ω

   Result

   RESULT CHART



   Result	Proceed to
   Both are OK	A
   One is OK	B
   Both are NG	C

B: REPLACE A/C AMPLIFIER ASSEMBLY AND REPAIR OR REPLACE HARNESS AND CONNECTOR

C: REPAIR OR REPLACE HARNESS AND CONNECTOR

A: REPLACE A/C AMPLIFIER ASSEMBLY
