Inspection Procedure

1. Check that the turn signal switch can operate the turn signal light normally.

   OK: Turn signal switch can operate the turn signal light normally.

OK: REPLACE TURN SIGNAL SWITCH ASSEMBLY

NG: Go to next step.

1. Disconnect the C11 switch connector.
   Fig 1: Identifying C11 Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage and resistance of the wire harness side connector.

   Standard voltage

   VOLTAGE SPECIFICATION



   Tester Connection	Specified Condition
   C11-1 (B) - Body ground	10 to 14 V

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   C11-8 (E) - Body ground	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step.

1. Disconnect the C11 switch connector.
2. Disconnect the L24 and T8 ECU connectors.

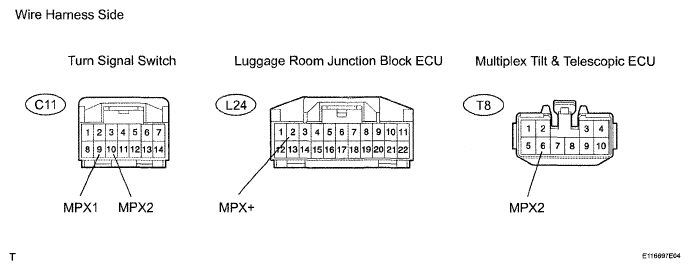

   Fig 2: Identifying C11 Switch Connector And L24 And T8 ECU Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   C11-9 (MPX1) - T8-6 (MPX2)	Below 1 Ω
   C11-10 (MPX2) - L24-2 (MPX+)	Below 1 Ω

   Result

   RESULT CHART



   Result	Proceed to
   Both are OK	A
   One is OK	B
   Both are NG	C

B: REPLACE TURN SIGNAL SWITCH ASSEMBLY AND REPAIR OR REPLACE HARNESS AND CONNECTOR

C: REPAIR OR REPLACE HARNESS AND CONNECTOR

A: REPLACE TURN SIGNAL SWITCH ASSEMBLY
