Parts Location

Fig 1: Identifying Front Power Seat Control System Parts Location (1 Of 5)
G05293667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

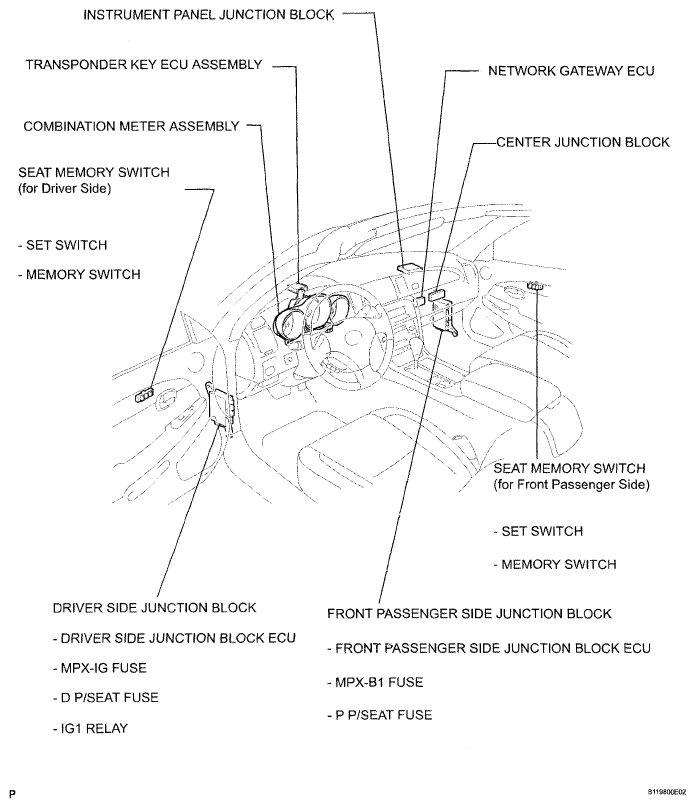

Fig 2: Identifying Front Power Seat Control System Parts Location (2 Of 5)
G05293668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Front Power Seat Control System Parts Location (3 Of 5)
G05293669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

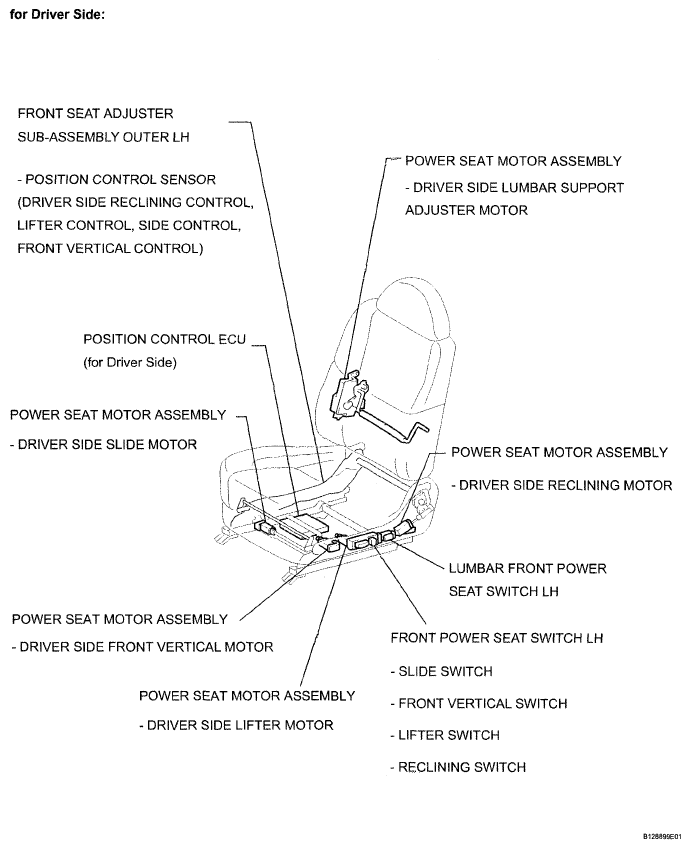

Fig 4: Identifying Front Power Seat Control System Parts Location (4 Of 5)
G05293670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

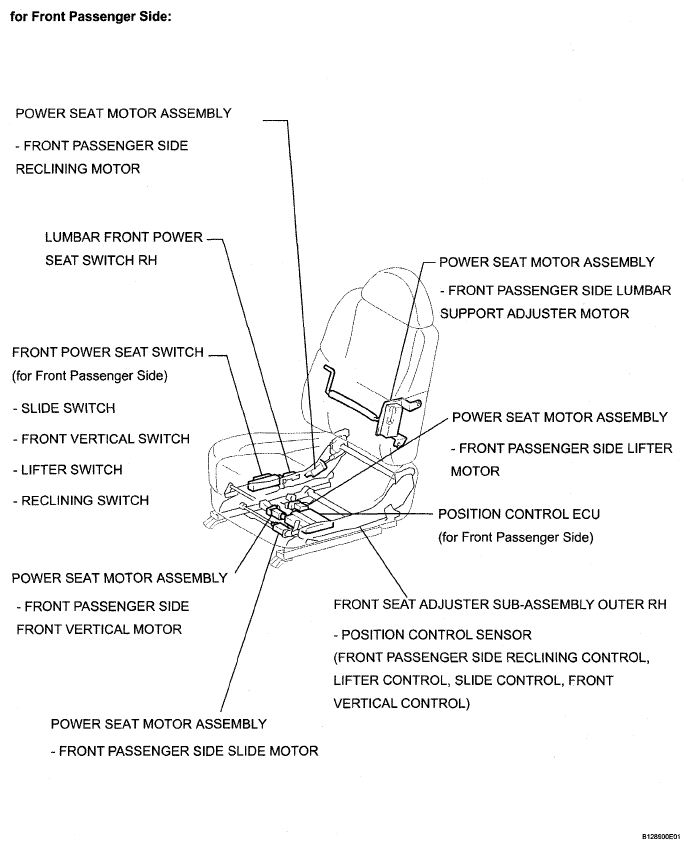

Fig 5: Identifying Front Power Seat Control System Parts Location (5 Of 5)
G05293671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
