DTC B1223 Power Window Switch Circuit on Passenger Door: Wiring Diagram

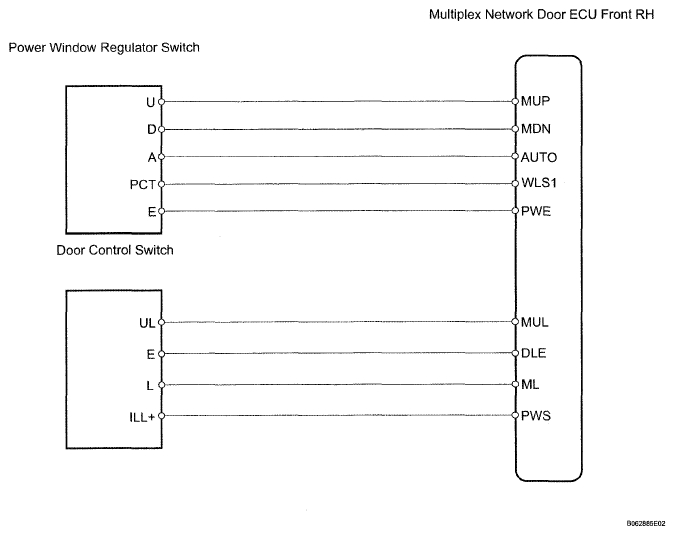

Fig 1: Power Window Switch Circuit On Passenger Door - Wiring Diagram
G05293425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
