Luggage Room Junction Block ECU Power Source Circuit: Wiring Diagram

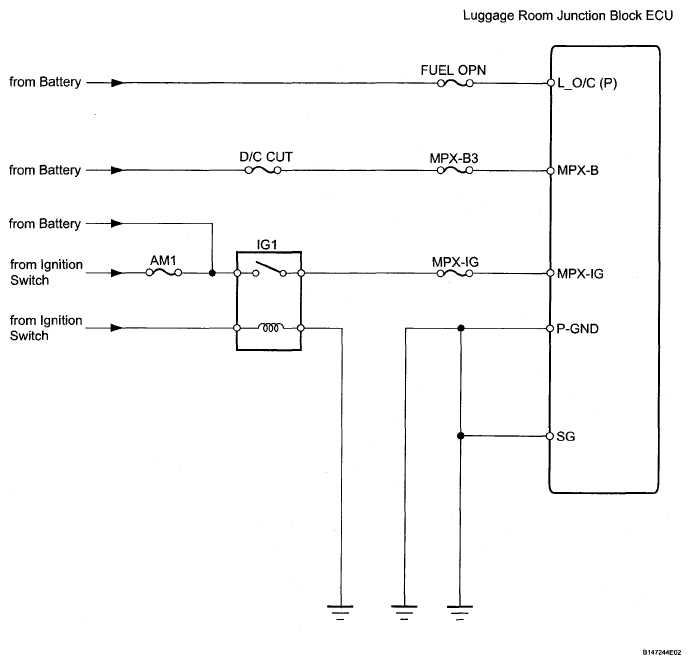

Fig 1: Luggage Room J/B ECU Power Source - Wiring Diagram
G05293516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
