DTC C1210/36 Zero Point Calibration of Yaw Rate Sensor Undone: Wiring Diagram

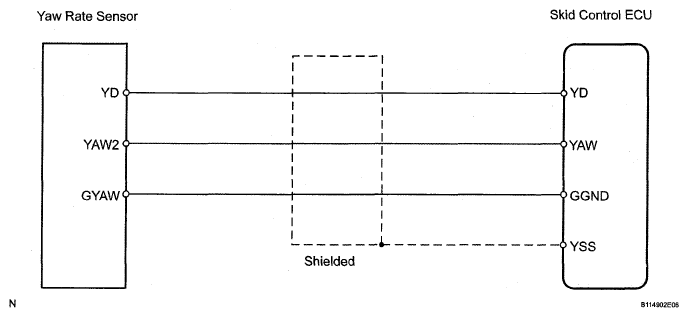

Fig 1: Zero Point Calibration Of Yaw Rate Sensor Undone - Wiring Diagram
G05290632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
