Power Tilt and Power Telescopic: Notes

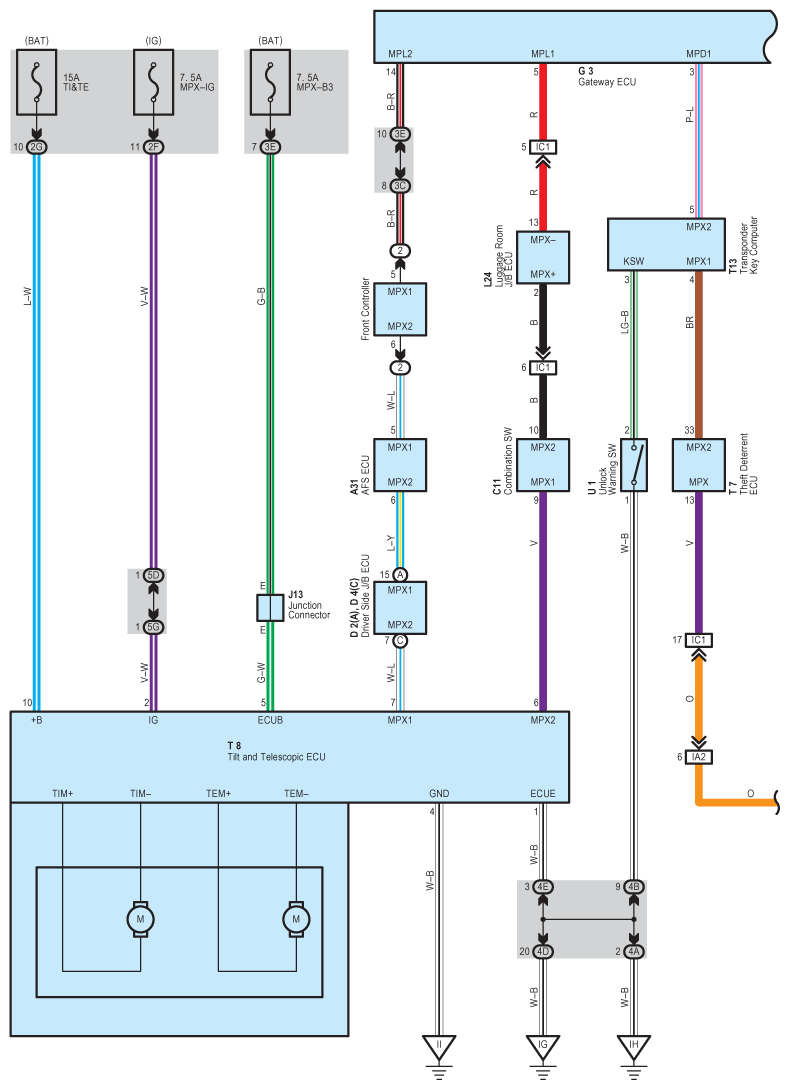

Fig 1: Power Tilt And Power Telescopic - Wiring Diagram (1 Of 2)
G08933896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

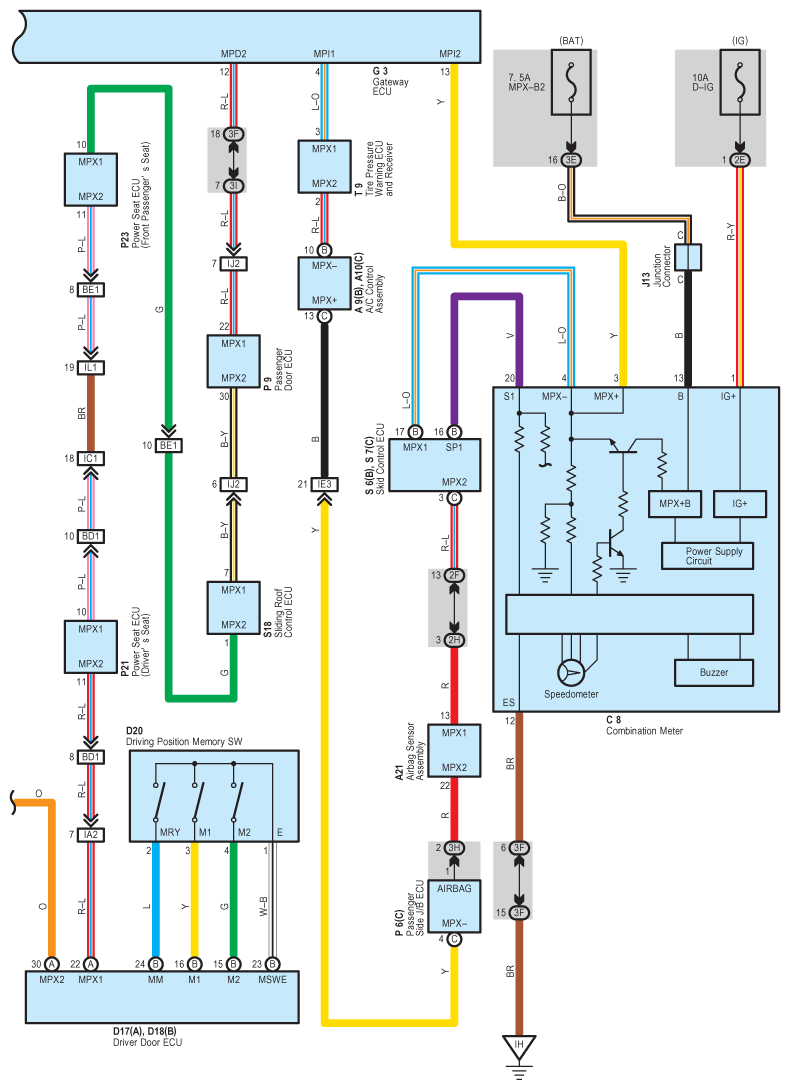

Fig 2: Power Tilt And Power Telescopic - Wiring Diagram (2 Of 2)
G08933897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
