Instrument Panel Safety Pad: Components

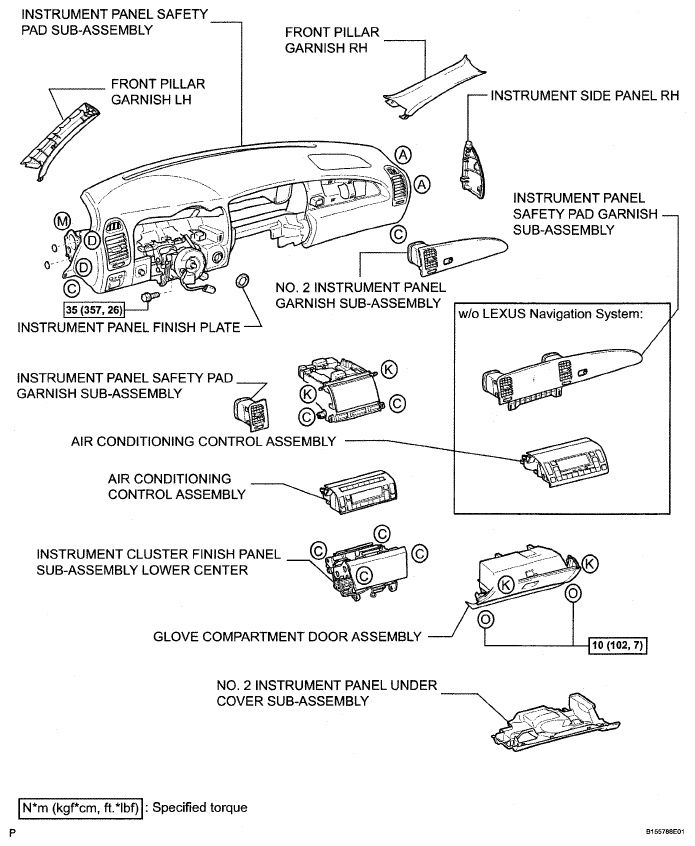

Fig 1: Instrument Panel Replacement Components With Torque Specifications (1 Of 5)
G05293614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

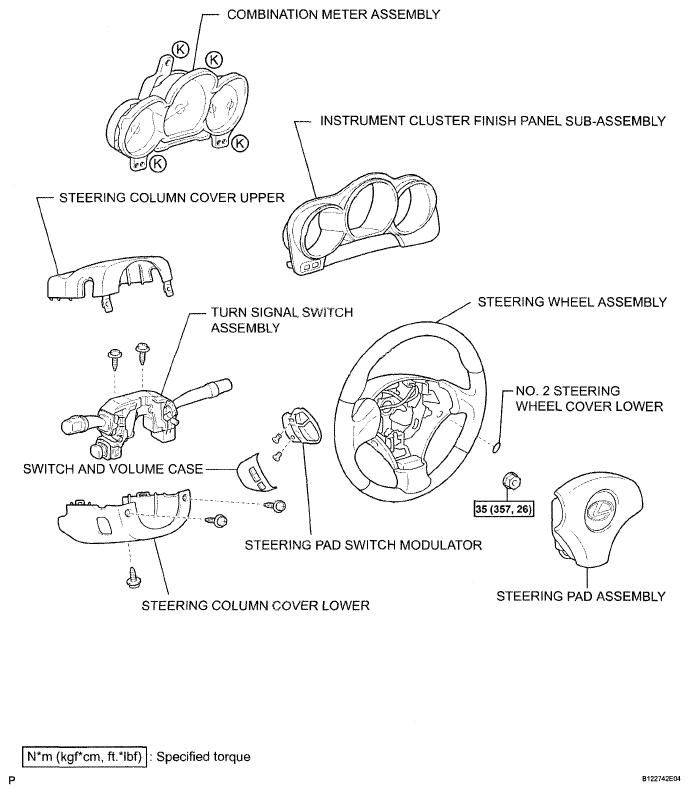

Fig 2: Instrument Panel Replacement Components With Torque Specifications (2 Of 5)
G05293615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

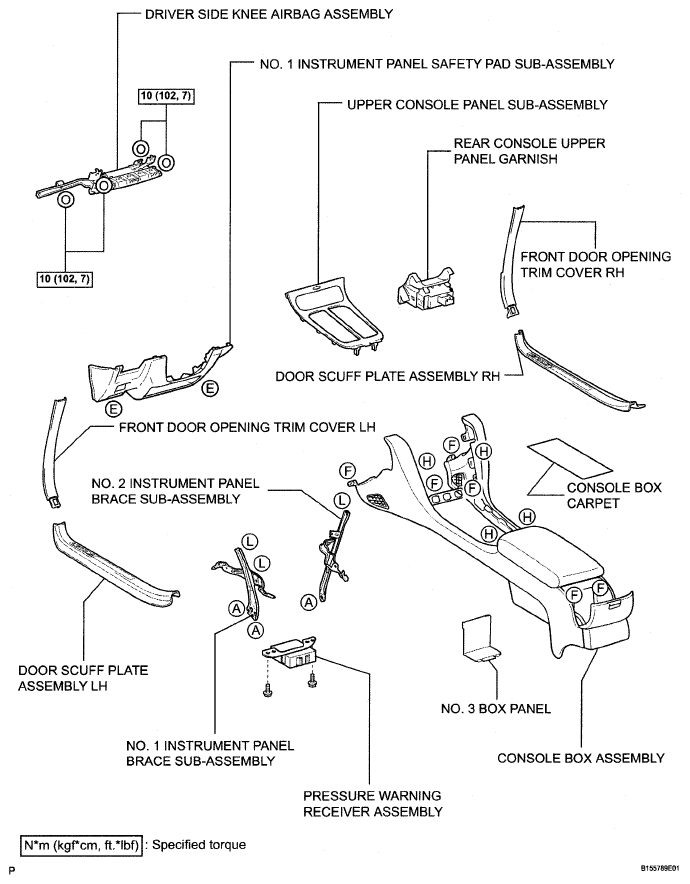

Fig 3: Instrument Panel Replacement Components With Torque Specifications (3 Of 5)
G05293616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

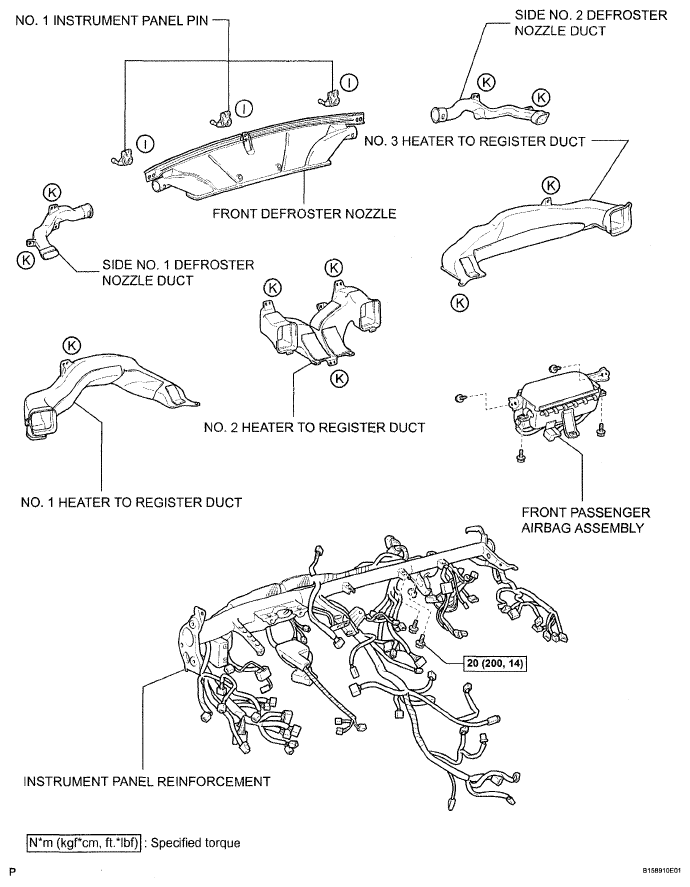

Fig 4: Instrument Panel Replacement Components With Torque Specifications (4 Of 5)
G05293617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

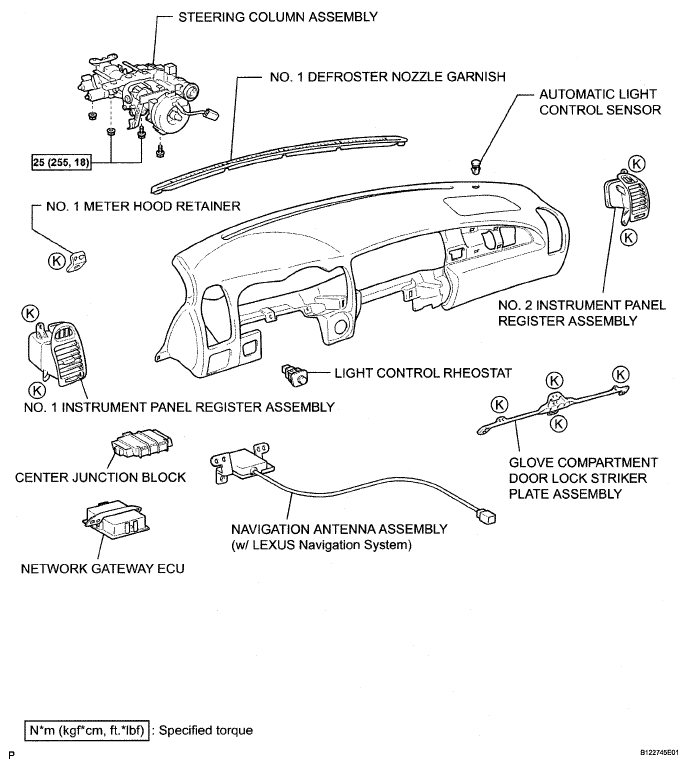

Fig 5: Instrument Panel Replacement Components With Torque Specifications (5 Of 5)
G05293618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
