Low Pitched Horn: Components

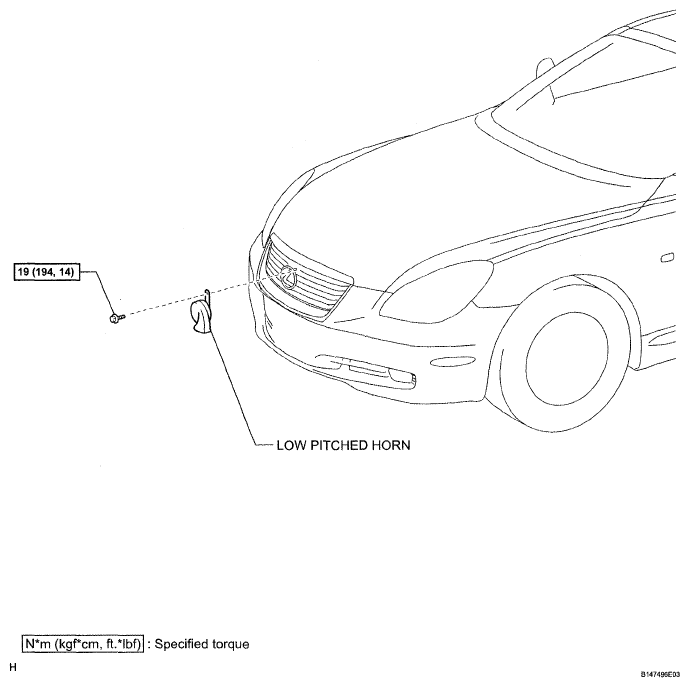

Fig 1: Low Pitched Horn Replacement Components With Torque Specifications
G05293385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
