Vacuum Switching Valve: Components

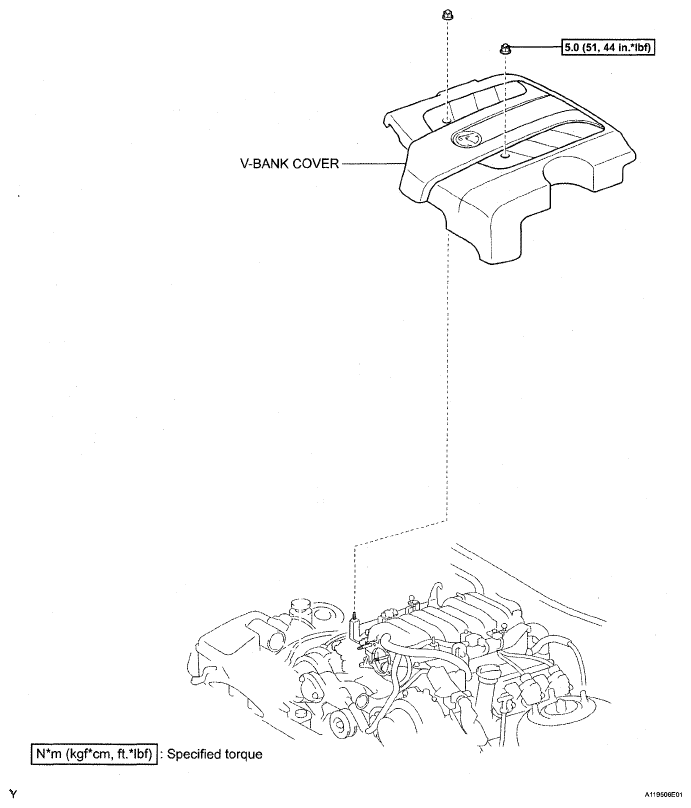

Fig 1: Vacuum Switching Valve Replacement Components With Torque Specifications (1 Of 2)
G05289228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

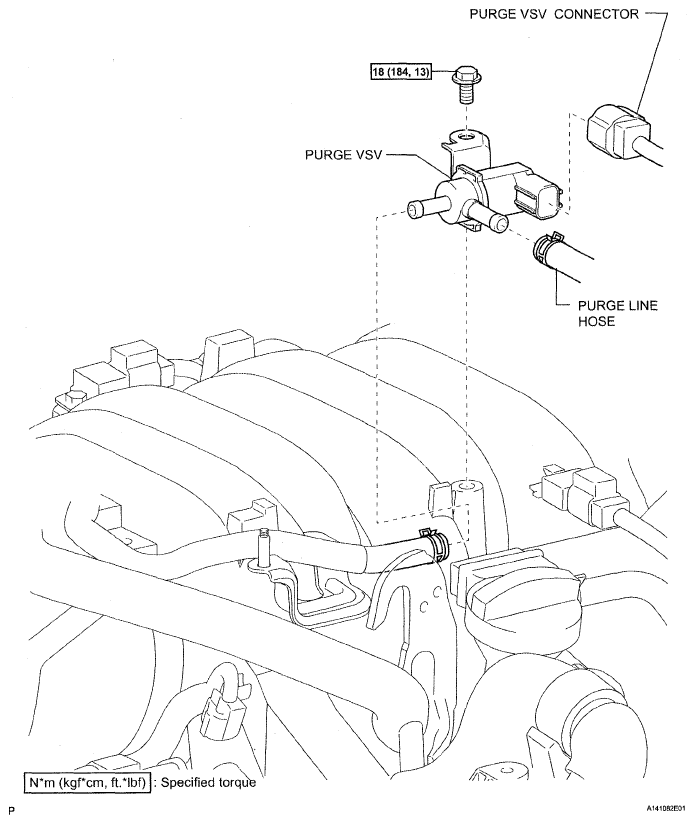

Fig 2: Vacuum Switching Valve Replacement Components With Torque Specifications (1 Of 2)
G05289229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
