Ventilation Valve: Components

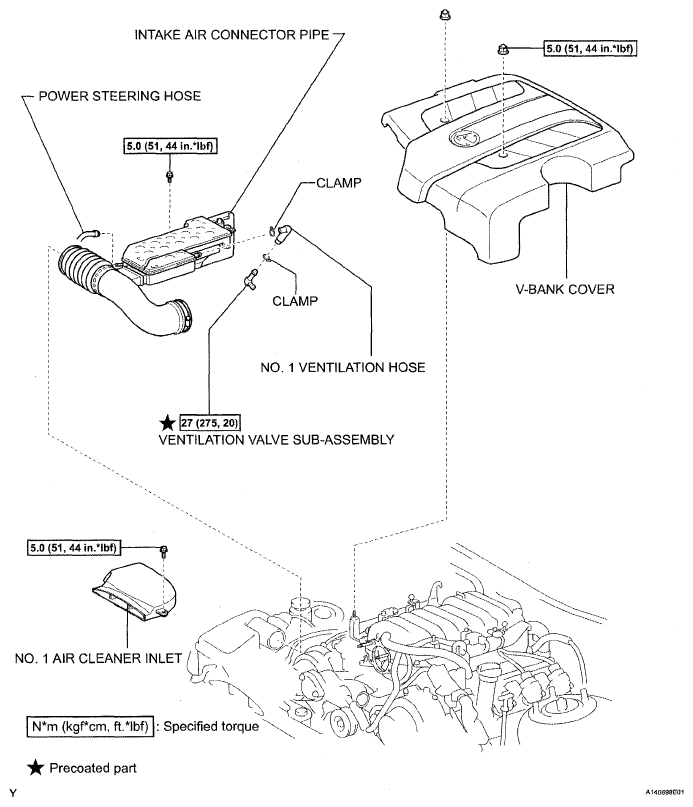

Fig 1: Ventilation Valve Replacement Components With Torque Specifications
G05289236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
