Exhaust Manifold: Components

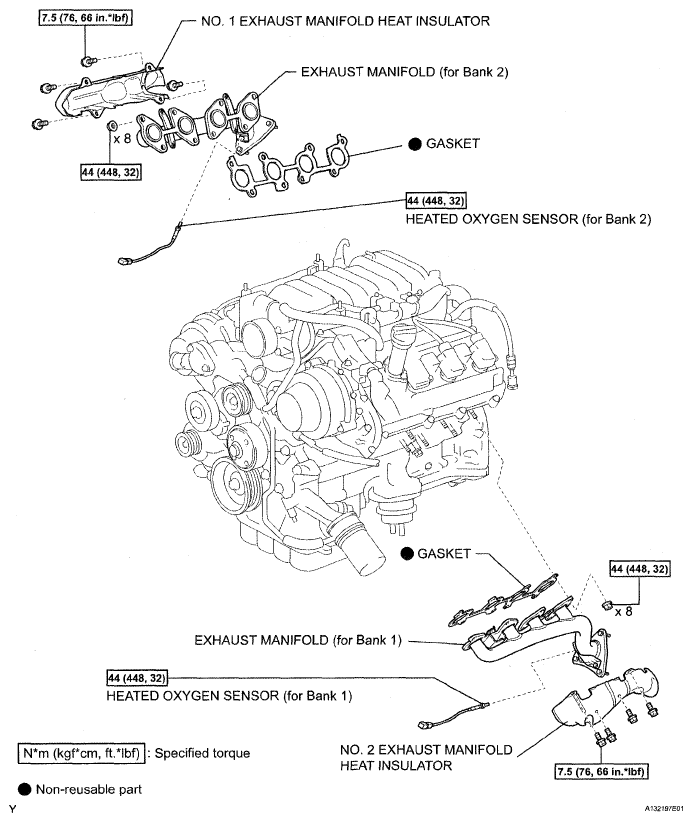

Fig 1: Exhaust Manifold Replacement Components With Torque Specifications
G05289292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
