DTC P0230 Fuel Pump Primary Circuit: Wiring Diagram

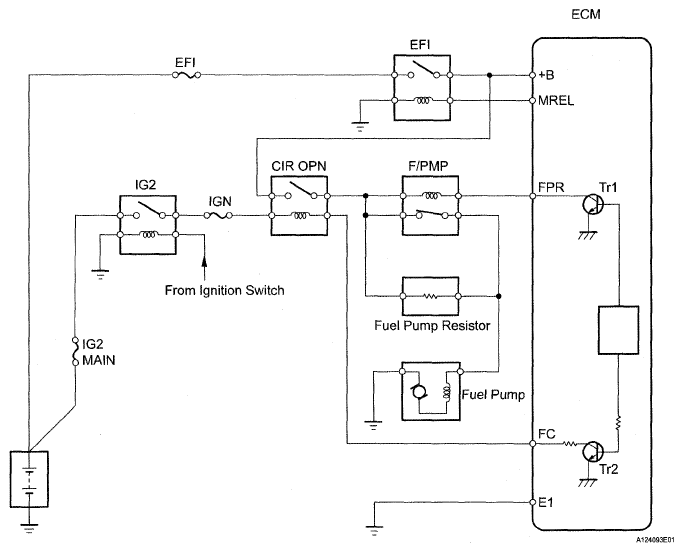

Fig 1: Fuel Pump Primary Circuit - Wiring Diagram
G05291389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
