DCC Fuse Installation During PDS (PD035-06)

Publication date: 2006-08-01
Reference number: PD035-06

DCC FUSE INSTALLATION DURING PDS

TECHNICAL SERVICE BULLETIN

Reference Number(s): PD035-06, Date of Issue: August 01, 2006

LEXUS:	2007 SC 430
Section:	PRE-DELIVERY SERVICE
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Introduction

To minimize battery discharge during transportation and storage, the DCC fuse has been removed at the assembly plant. Reinstall the DCC fuse during Pre-Delivery Service (PDS).

Applicable Vehicles

2007 model year SC 430 vehicles.

Installation Procedure

The DCC fuse (15A) is stored in the blank space of the No. 1 Relay Block in the engine compartment. During PDS, install the DCC fuse in the No. 1 Relay Block as shown.

NOTE: If the vehicle is stored in the dealership for a long period of time after PDS, disconnect the negative (-) battery terminal to prevent battery discharge. Refer to TSIB No. PG001-06, BATTERY MAINTENANCE FOR IN-STOCK VEHICLES & PRE-DELIVERY

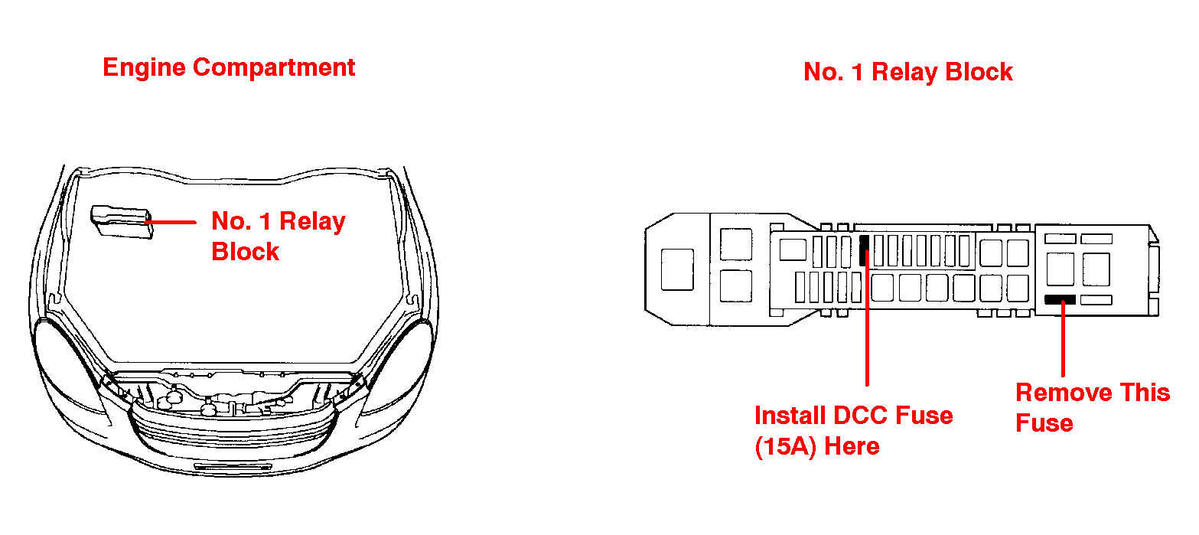

Fig 1: Identifying DCC Fuse

Warranty Information

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	-	-	-	-
