Front Seat Outer Belt Assembly With PRETENSIONER: Components

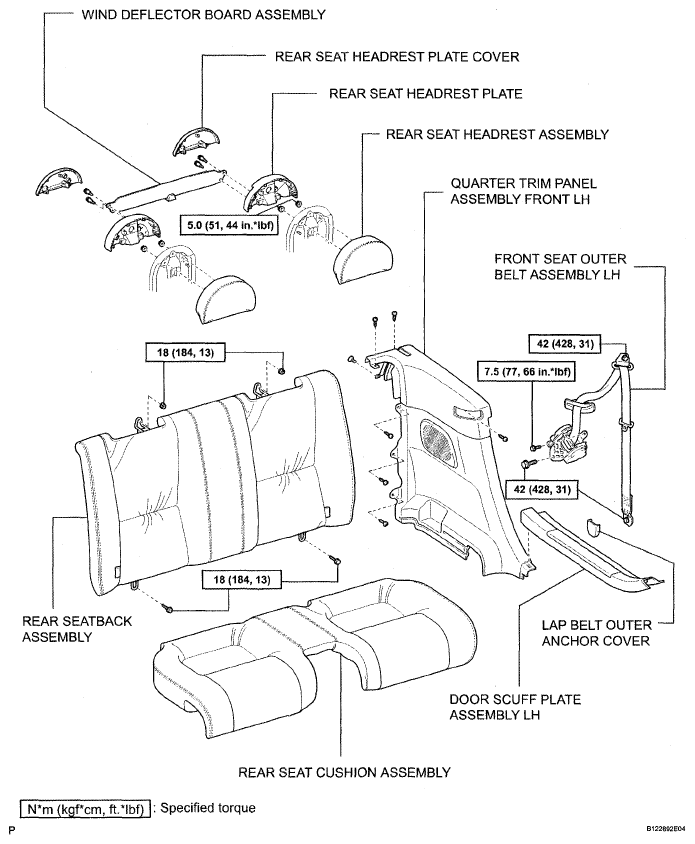

Fig 1: Front Seat Outer Belt Assembly Replacement Components With Torque Specifications (1 Of 2)
G05292414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Front Seat Outer Belt Assembly Replacement Components With Torque Specifications (2 Of 2)
G05292415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
