System Diagram

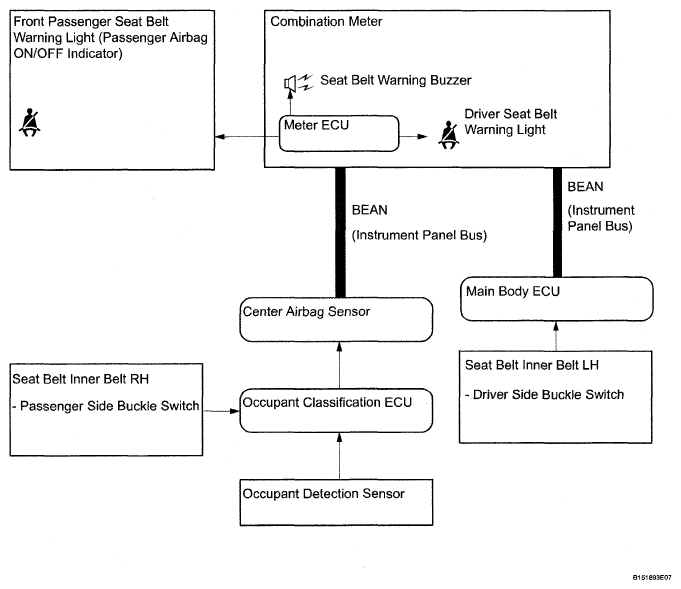

Fig 1: Seat Belt Warning System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table:

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
Main body ECU	Meter ECU	Front seat inner belt switch signal (for driver side)	BEAN
Center airbag sensor	Meter ECU	Front seat inner belt switch signal (for passenger side) Occupant detection signal	BEAN
