Transmission Wire: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
DRAIN AUTOMATIC TRANSMISSION FLUID
1. Remove the drain plug and gasket, and drain the ATF.
2. Install a new gasket and the drain plug.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
1. Remove the 4 bolts, 2 nuts and bracket.

  Fig 1: Removing No. 1 Exhaust Pipe Support Bracket Sub-Assembly Nut And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
NOTE: Some fluid will remain in the oil pan.
1. Remove the 20 bolts, oil pan and gasket.

  Fig 2: Locating Oil Pan And Gasket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

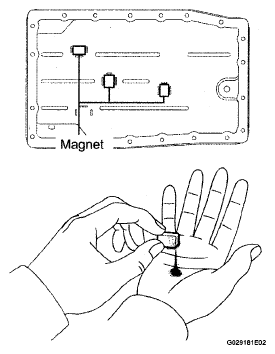

2. Remove the 3 magnets from the oil pan.
3. Examine the particles in the pan.
  1. Collect any steel chips with the removed magnets.
    Carefully look at the foreign objects and particles in the pan and on the magnets to guess the type of wear which might be found in the transmission.

    Steel (magnetic): bearing, gear and clutch plate wear

    Brass (non-magnetic): bush wear

    Fig 3: Identifying Oil Pan Magnet
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VALVE BODY OIL STRAINER ASSEMBLY
1. Remove the 4 bolts and oil strainer.
  NOTE: Be careful as some fluid will come out of the oil strainer.

  Fig 4: Locating Valve Body Oil Strainer Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the oil strainer.

  Fig 5: Locating Oil Strainer O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION WIRE
1. Remove the bolt, lock plate and ATF temperature sensor.

  Fig 6: Locating Transmission Wire Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and disconnect the 2 clamps.

  Fig 7: Locating Bolts And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the 9 connectors from the solenoid valves.
4. Disconnect the transmission wire connector.

  Fig 8: Locating Solenoid Valves Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the bolt and pull out the transmission wire.

  Fig 9: Locating Transmission Wire Connector Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the O-ring from the transmission wire.

  Fig 10: Identifying Removed O-Ring From Transmission Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
