Inspection Procedure

  1. READ VALUE OF TECHSTREAM (TOUCH SENSOR)
    1. Connect Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the tester on.
    4. Enter the following menus: Body Electrical / Smart Access / Data List.
    5. Read the Data List according to the display on the tester.

      Smart Access:

      SMART ACCESS DATA LIST

      Tester Display Measurement Item/Range Normal Condition
      D Touch Sensor Status of touch sensor front LH/ ON or OFF ON: Touch sensor is touched
      OFF: Touch sensor is not touched
      P Touch Sensor Status of touch sensor front RH/ ON or OFF ON: Touch sensor is touched
      OFF: Touch sensor is not touched
      DR Touch Sensor Rear door touch sensor LH/ON or OFF ON: Sensor is touched
      OFF: Sensor is not touched
      PR Touch Sensor Rear door touch sensor RH/ON or OFF ON: Sensor is touched
      OFF: Sensor is not touched

      OK:

      "ON" (screen is touched) or "OFF" (screen is not touched) appears on the tester screen.

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

    NG: Go to next step

  2. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - ELECTRICAL KEY OSCILLATOR)
    1. Disconnect the E13 and E14 ECU connectors.
    2. Disconnect the oscillator connectors.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance:

      Front LH side

      RESISTANCE SPECIFICATION CHART

      Tester Connection (Symbols) Condition Specified Condition
      E13-5 (SEL1) - a2-4 (SEL) Always Below 1 Ω
      E13-22 (SEN1) - a2-6 (SENS) Always Below 1 Ω
      E13-5 (SEL1) - Body ground Always 10 kΩ or higher
      E13-22 (SEN1) - Body ground Always 10 kΩ or higher

      Front RH side

      RESISTANCE SPECIFICATION CHART

      Tester Connection (Symbols) Condition Specified Condition
      E13-6 (SEL2) - Z2-4 (SEL) Always Below 1 Ω
      E13-23 (SEN2) - Z2-6 (SENS) Always Below 1 Ω
      E13-6 (SEL2) - Body ground Always 10 kΩ or higher
      E13-23 (SEN2) - Body ground Always 10 kΩ or higher

      Rear LH side

      RESISTANCE SPECIFICATION CHART

      Tester Connection (Symbols) Condition Specified Condition
      E14-1 (SEL3) - C2-4 (SEL) Always Below 1 Ω
      E14-28 (SEN3) - C2-6 (SENS) Always Below 1 Ω
      E14-1 (SEL3) - Body ground Always 10 kΩ or higher
      E14-28 (SEN3) - Body ground Always 10 kΩ or higher

      Rear RH side

      RESISTANCE SPECIFICATION CHART

      Tester Connection (Symbols) Condition Specified Condition
      E14-2 (SEL4) - b2-4 (SEL) Always Below 1 Ω
      E14-27 (SEN4) - b2-6 (SENS) Always Below 1 Ω
      E14-2 (SEL4) - Body ground Always 10 kΩ or higher
      E14-27 (SEN4) - Body ground Always 10 kΩ or higher

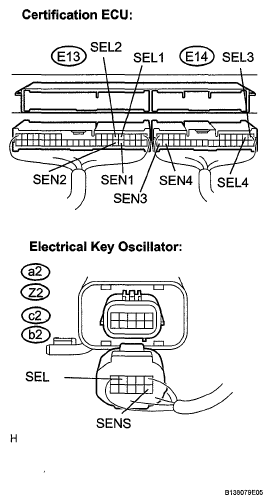

      Fig 1: Identifying E13, E14 ECU And Oscillator Connectors
      G05837738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. CHECK AND REPLACE ELECTRICAL KEY OSCILLATOR (CHECK OPERATION OF OSCILLATOR)
    1. Replace the electrical key oscillator.
    2. Check that the entry UNLOCK function operates normally.

      OK:

      Entry UNLOCK function operates normally.

    OK: END (ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

    NG: Go to next step

  4. INSPECT CERTIFICATION ECU
    1. Reconnect the ECU and the oscillator connectors.
    2. Connect Techstream to the DLC3.
    3. Turn the engine switch on (IG).
    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage:

      Front LH side

      VOLTAGE SPECIFICATION CHART

      Tester Connection (Symbols) Condition Specified Condition
      E13-5 (SEL1) - Body ground Move the key more than 5 m (16.4 ft) away from the front door LH 10 to 14 V
      E13-5 (SEL1) - Body ground Bring key to the outside handle Below 1 V
      E13-22 (SEN1) - Body ground Front door LH outside handle is not held (Bring the electrical key to the outside handle) 10 to 14 V
      E13-22 (SEN1) - Body ground Front door LH outside handle is held Below 1 V
      Fig 2: Identifying Certification ECU Connector
      G05252760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Front RH side

      VOLTAGE SPECIFICATION CHART

      Tester Connection (Symbols) Condition Specified Condition
      E13-6 (SEL2) - Body ground Move the key more than 5 m (16.4 ft) away from the front door RH 10 to 14 V
      E13-6 (SEL2) - Body ground Bring key to the outside handle Below 1 V
      E13-23 (SEN2) - Body ground Front door RH outside handle is not held (Bring the electrical key to the outside handle) 10 to 14 V
      E13-23 (SEN2) - Body ground Front door RH outside handle is held Below 1 V

      Rear LH side

      VOLTAGE SPECIFICATION CHART

      Tester Connection (Symbols) Condition Specified Condition
      E14-1 (SEL3) - Body ground Move the key more than 5 m (16.4 ft) away from the rear door LH 10 to 14 V
      E14-1 (SEL3) - Body ground Bring key to the outside handle Below 1 V
      E14-28 (SEN3) - Body ground Rear door LH outside handle is not held (Bring the electrical key outside the handle) 10 to 14 V
      E14-28 (SEN3) - Body ground Rear door LH outside handle is held Below 1 V

      Rear RH side

      VOLTAGE SPECIFICATION CHART

      Tester Connection (Symbols) Condition Specified Condition
      E14-2 (SEL4) - Body ground Move the key more than 5 m (16.4 ft) away from the rear door RH 10 to 14 V
      E14-2 (SEL4) - Body ground Bring key to the outside handle Below 1 V
      E14-27 (SEN4) - Body ground Rear door RH outside handle is not held (Bring the electrical key outside the handle) 10 to 14 V
      E14-27 (SEN4) - Body ground Rear door RH outside handle is held Below 1 V

    NG: REPLACE CERTIFICATION ECU

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
