ECU Power Source Circuit: Wiring Diagram

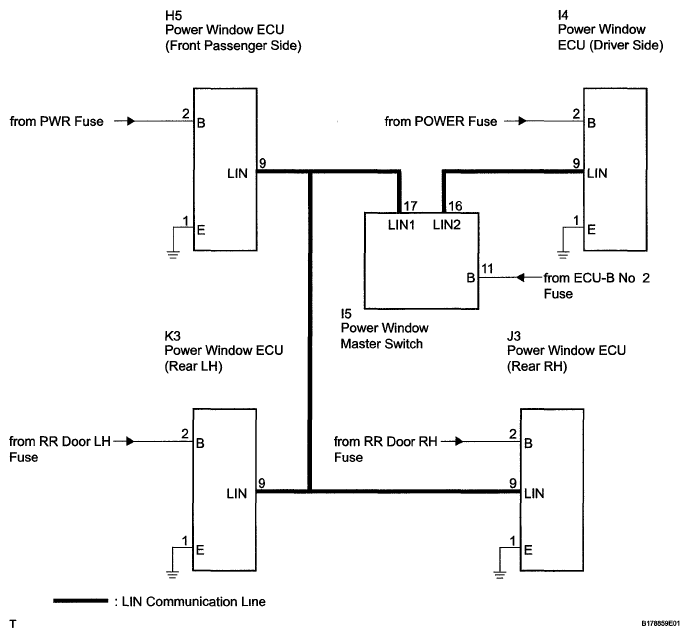

Fig 1: ECU Power Source Circuit - Wiring Diagram
G05837929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
