Conditioning For Sensor Testing

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

Perform the operation with the engine speeds and time durations described below prior to checking the waveforms of the A/F and HO2 sensors. This is performed in order to heat the sensors sufficiently to obtain the appropriate inspection results.

Fig 1: Identifying Engine Speeds & Time Durations Graph

Connect the intelligent tester to the DLC3 (Procedure "A").
Start the engine and warm it up with all the accessories switched off, until the engine coolant temperature stabilizes (Procedure "B").
Run the engine at an engine speed of between 2,500 rpm and 3,000 rpm for at least 3 minutes (Procedure "C").
While running the engine at 3,000 rpm for 2 seconds and 2,000 rpm for 2 seconds, check the waveforms of the A/F and HO2 sensors using the tester or scan tool (Procedure "D").
NOTE: The Air-Fuel Ratio (A/F) sensor has an output delay of a few seconds and the Heated Oxygen (HO2) sensor has a maximum output delay of approximately 20 seconds.

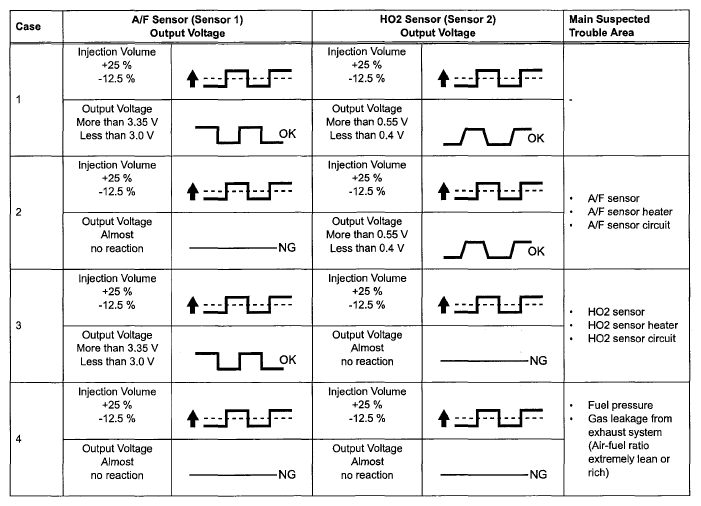

Fig 2: Identifying A/F Sensor Output Voltage & HO2 Sensor Output Voltage Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Following the A/F CONTROL procedure enables technicians to check and graph the output voltages of both the A/F and HO2 sensors.
- To display the graph, enter the following menus on the tester: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / A/F CONTROL / USER DATA/AFS B1 S1 and O2S B1 S2 or AFS B2 S1 and O2S B2 S2, and press the YES button and then the ENTER button followed by the F4 button.
