DTC B1774 Pressure Sensor Circuit Malfunction; DTC B1775 Pressure Sensor Power Source Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

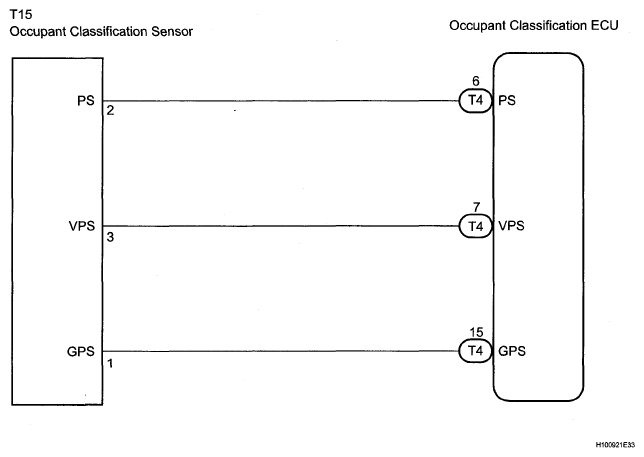

Fig 1: Occupant Classification Sensor And ECU - Wiring Diagram
G05251705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
