Water Pump: Components

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Water Pump Replacement Components With Torque Specifications (1 Of 2)
G00513507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

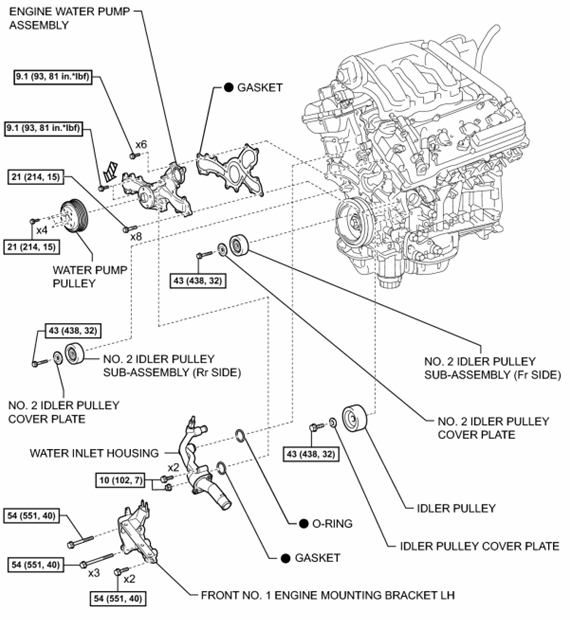

Fig 2: Identifying Water Pump Replacement Components With Torque Specifications (2 Of 2)
G00513508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
