Power Source Mode does not Change to ON (IG and ACC): Wiring Diagram

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

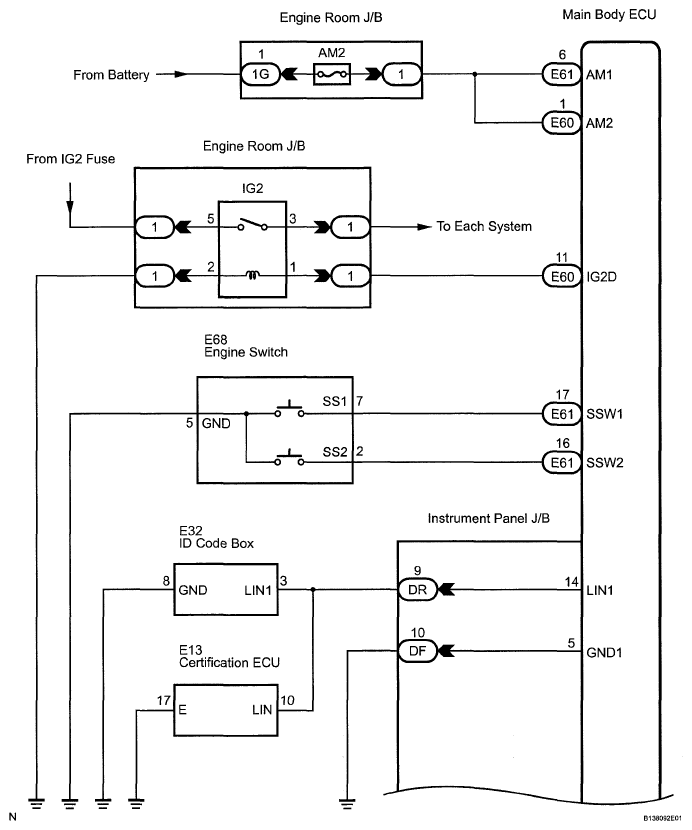

Fig 1: Engine Switch - Wiring Diagram (1 Of 2)
G05248888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

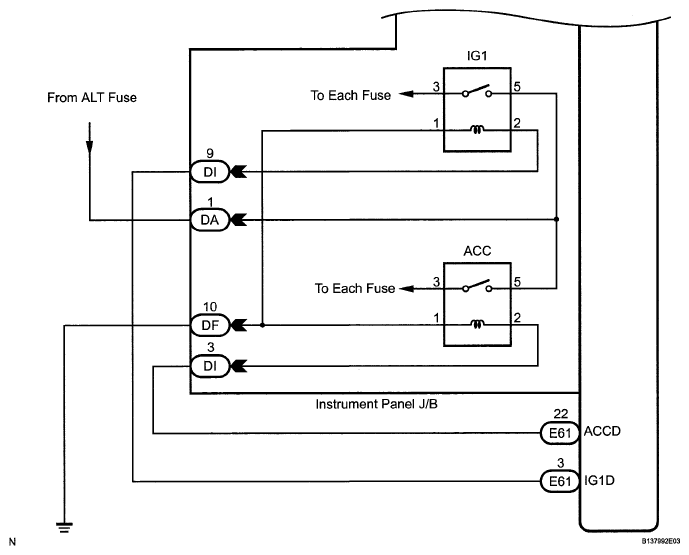

Fig 2: Engine Switch - Wiring Diagram (2 Of 2)
G05248889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
