Distance Control Ecu: Removal: Notes

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See REMOVAL )
  3. REMOVE DISTANCE CONTROL ECU ASSEMBLY

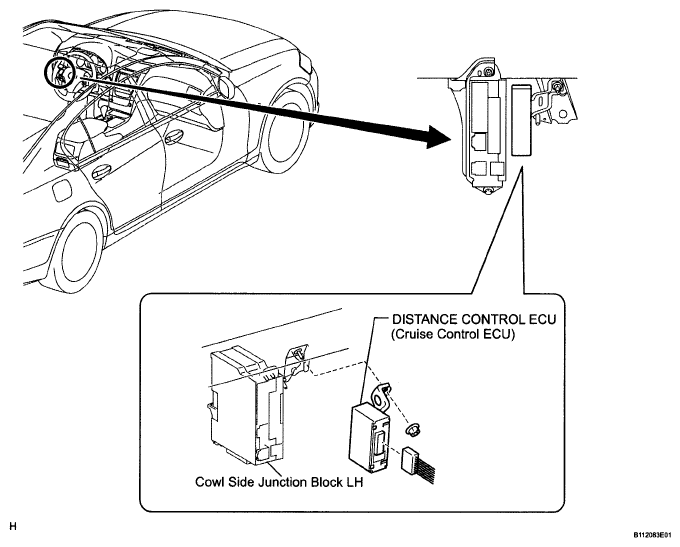

    Fig 1: Identifying Distance Control ECU Assembly
    G05811017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
    2. Remove the nut and distance control ECU.
