Ultrasonic Sensor: Components

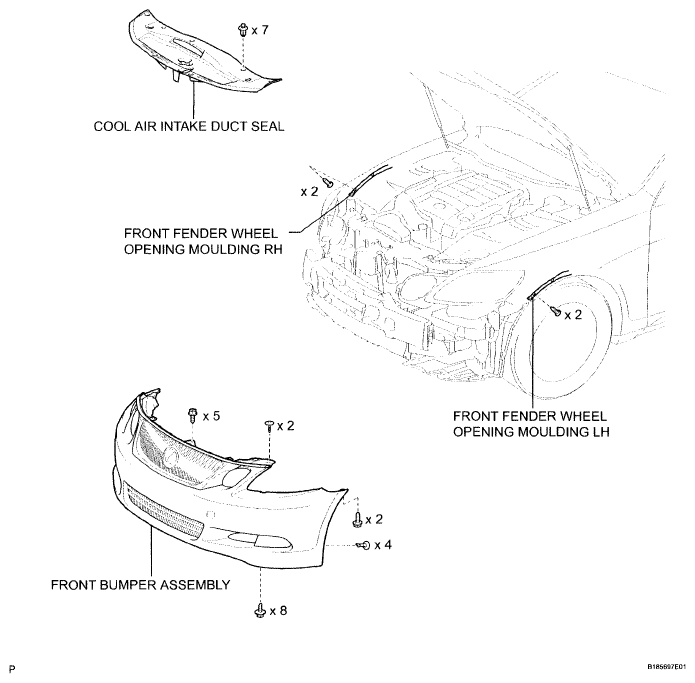

Fig 1: Ultrasonic Sensor Replacement Components With Torque Specifications (1 Of 4)
G05811535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

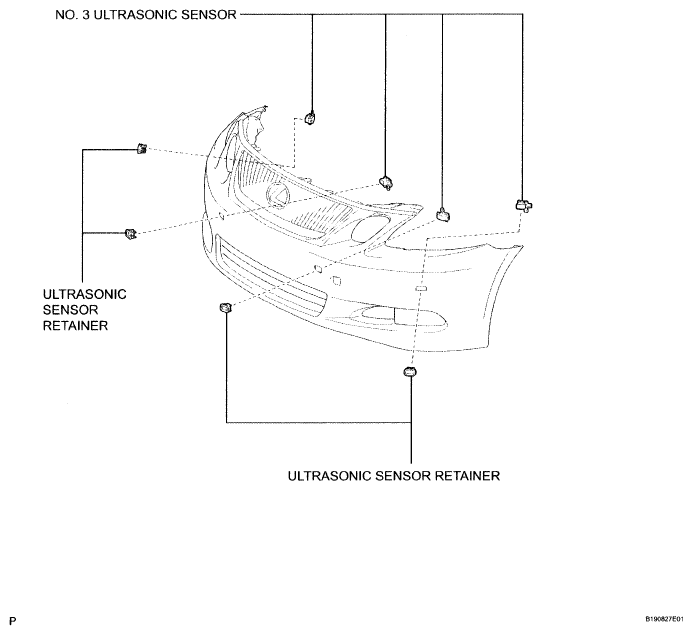

Fig 2: Ultrasonic Sensor Replacement Components With Torque Specifications (2 Of 4)
G05811536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

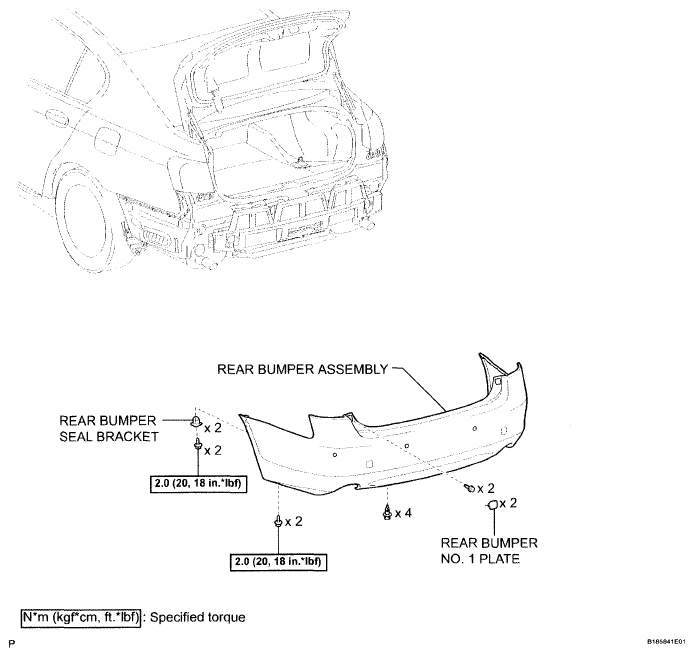

Fig 3: Ultrasonic Sensor Replacement Components With Torque Specifications (3 Of 4)
G05811537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

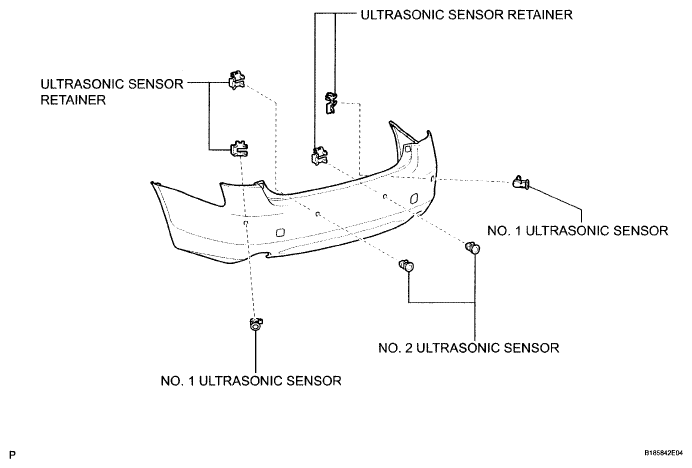

Fig 4: Ultrasonic Sensor Replacement Components With Torque Specifications (4 Of 4)
G05811538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
