Pattern Select Switch Power Mode Circuit: Wiring Diagram

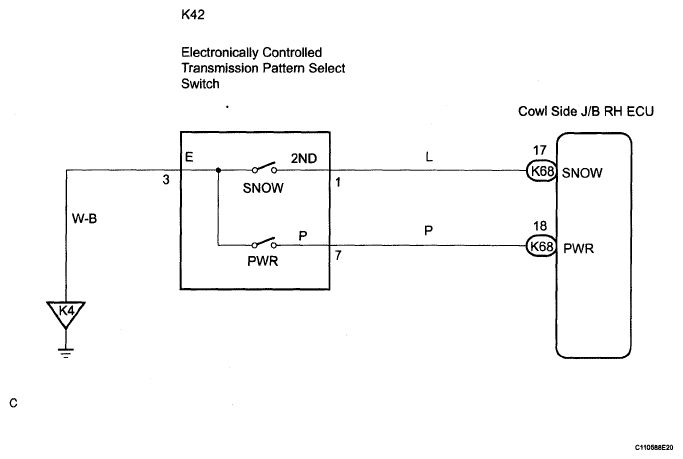

Fig 1: Pattern Select Switch Power Mode - Wiring Diagram
G05802720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
