Floor Shift Assembly: Components

Fig 1: Floor Shift Assembly Replacement Components With Torque Specifications (1 Of 3)
G05294792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

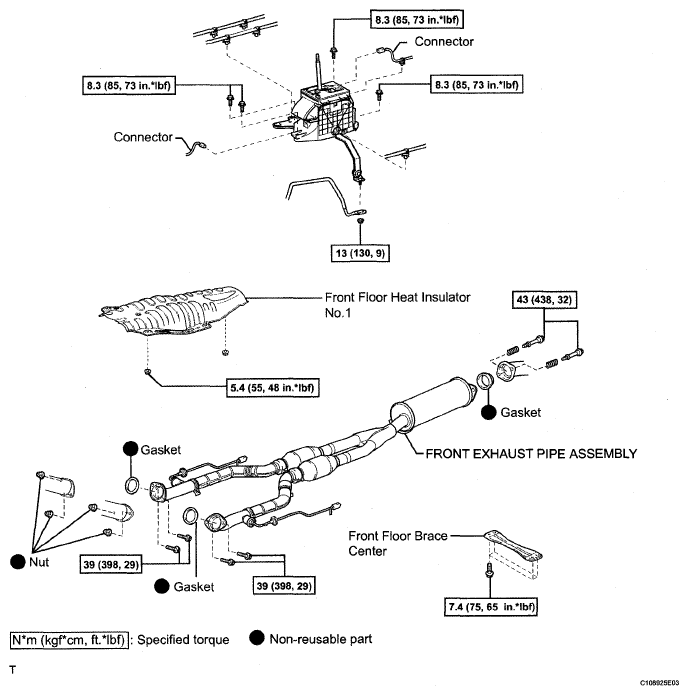

Fig 2: Floor Shift Assembly Replacement Components With Torque Specifications (2 Of 3)
G05294793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Floor Shift Assembly Replacement Components With Torque Specifications (3 Of 3)
G05294794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
