Components

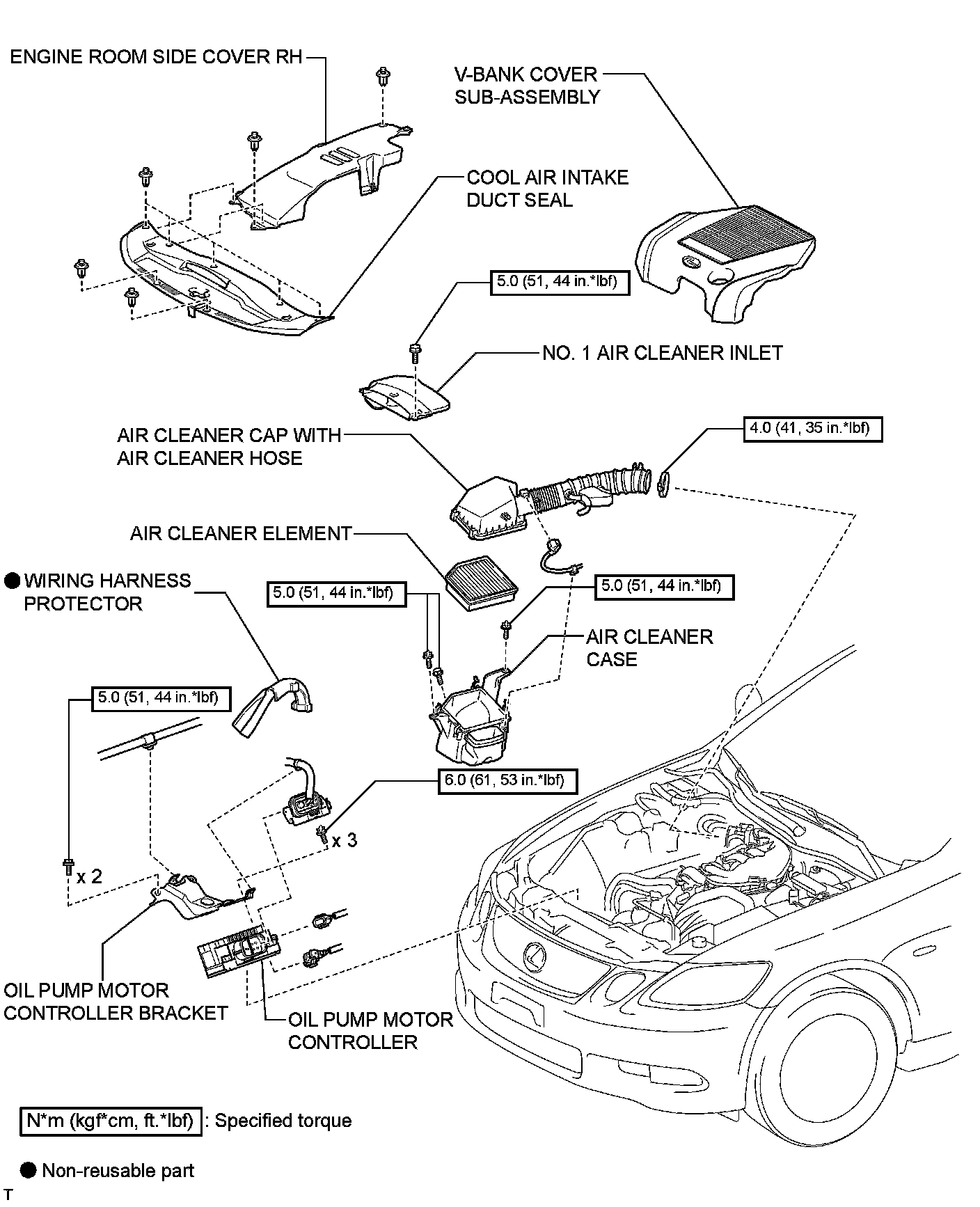

L110 HYBRID TRANSMISSION / TRANSAXLE: OIL PUMP MOTOR CONTROLLER: COMPONENTS
COMPONENTS

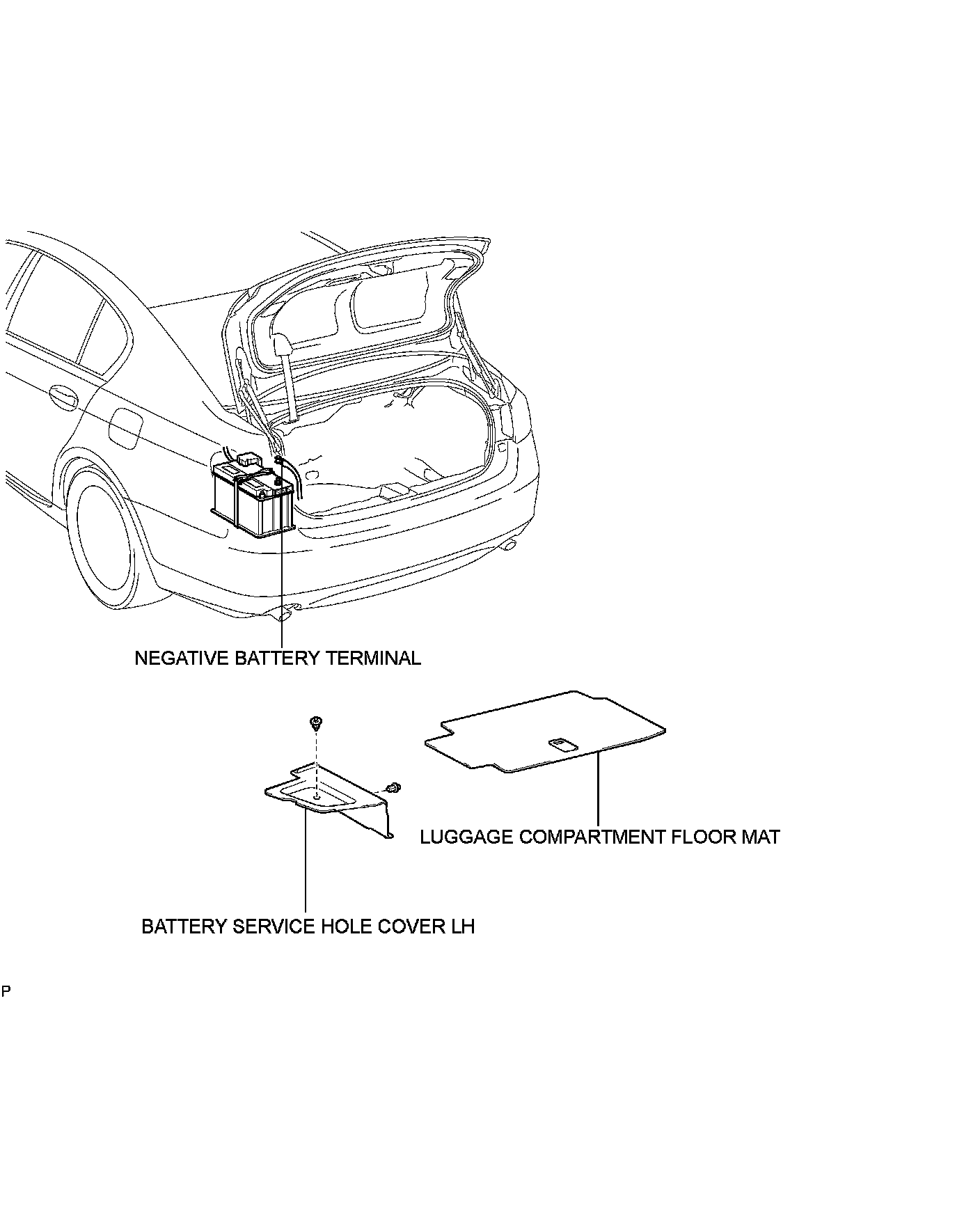

ILLUSTRATION
