Yaw Rate And Acceleration Sensor: Components

Fig 1: Yaw Rate And Acceleration Sensor With Torque Specification (1 Of 2)
G05816426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

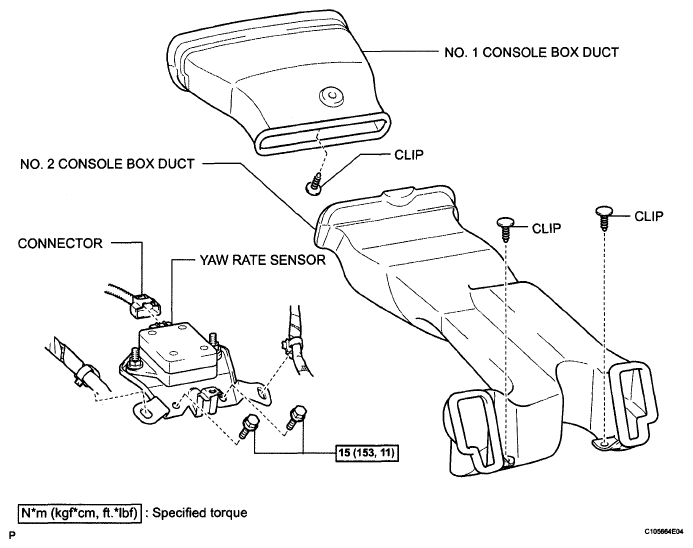

Fig 2: Yaw Rate And Acceleration Sensor With Torque Specification (2 Of 2)
G05816427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
