Parts Location

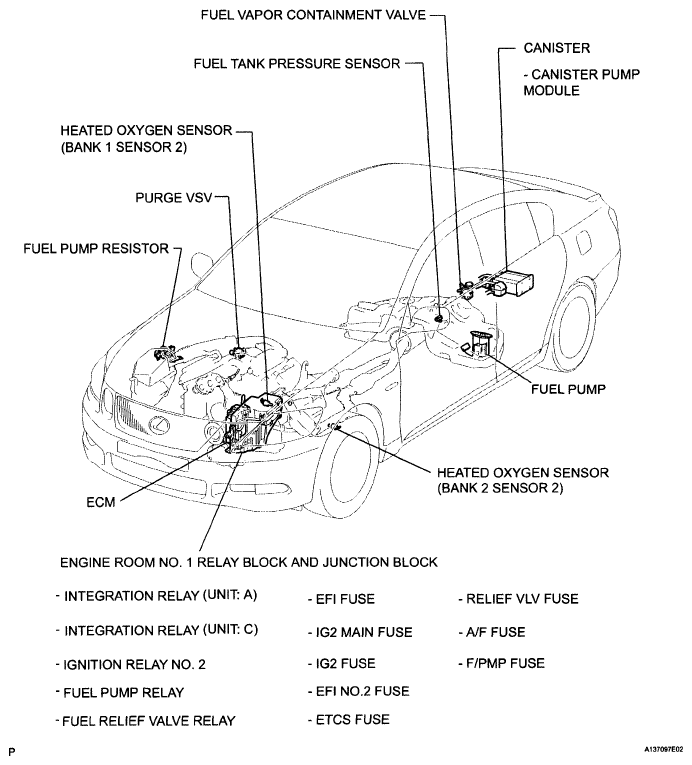

Fig 1: Identifying Engine Control System Components (1 Of 4)
G05813257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

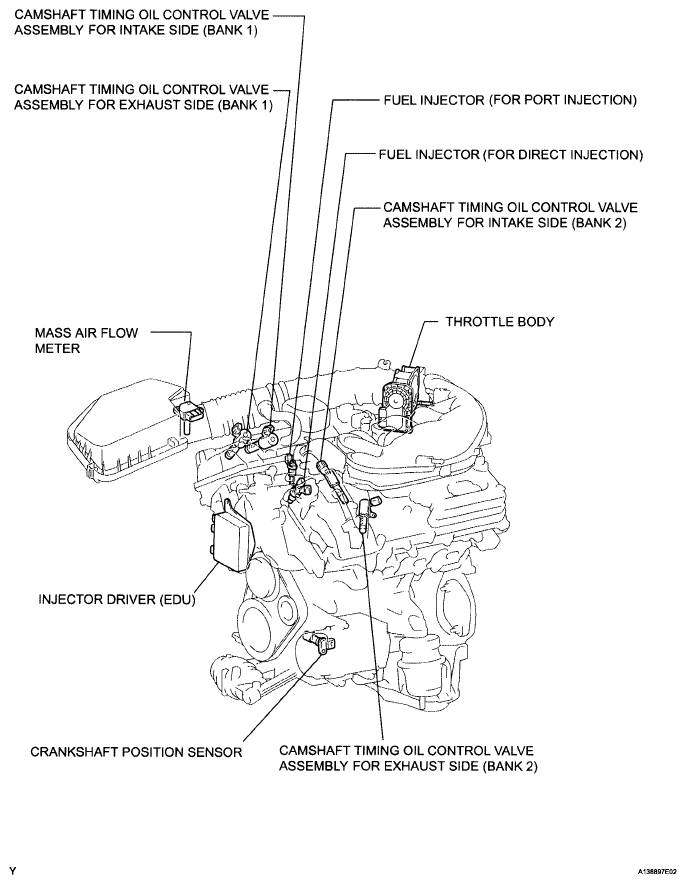

Fig 2: Identifying Engine Control System Components (2 Of 4)
G05813258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

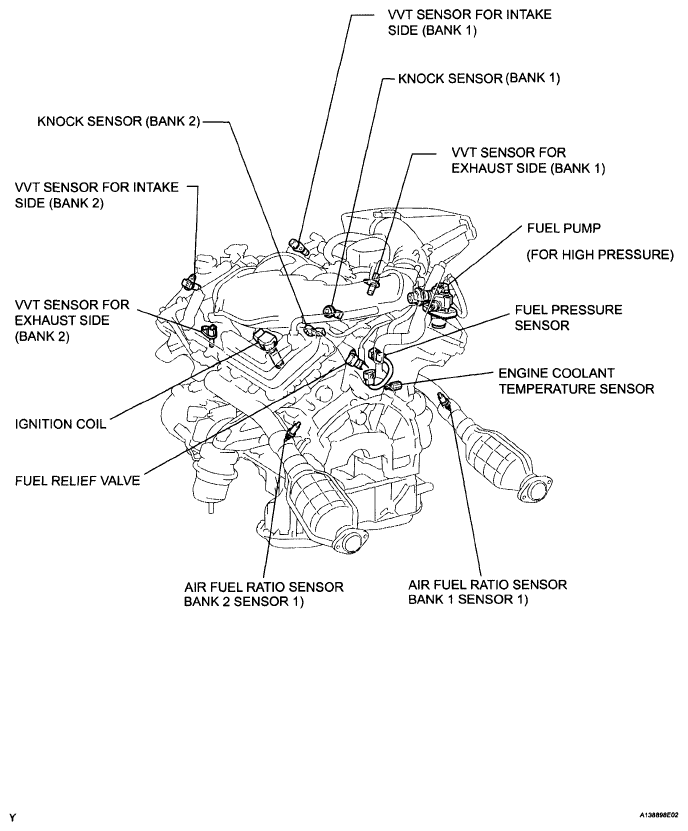

Fig 3: Identifying Engine Control System Components (3 Of 4)
G05813259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

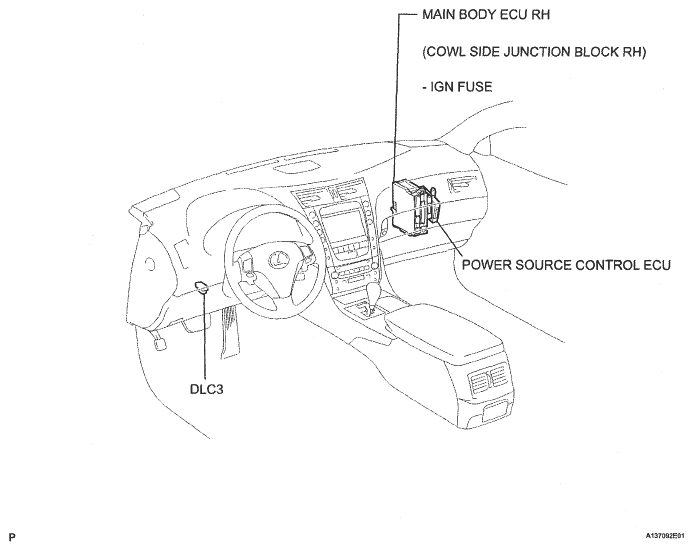

Fig 4: Identifying Engine Control System Components (4 Of 4)
G05302238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
