Engine Control System - System And Circuit Testing, On-Vehicle Inspection, Removal, Inspection & Installation: ECM: Components

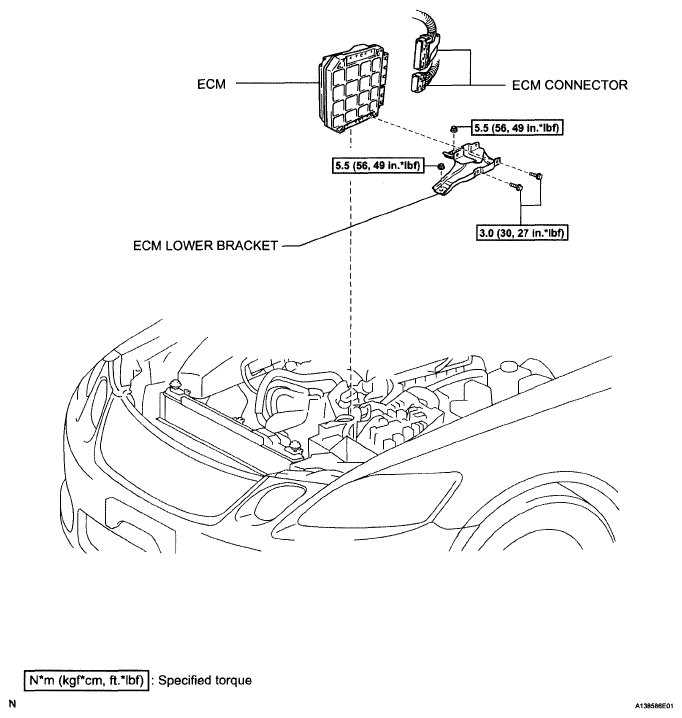

Fig 1: Identifying ECM Replacement Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

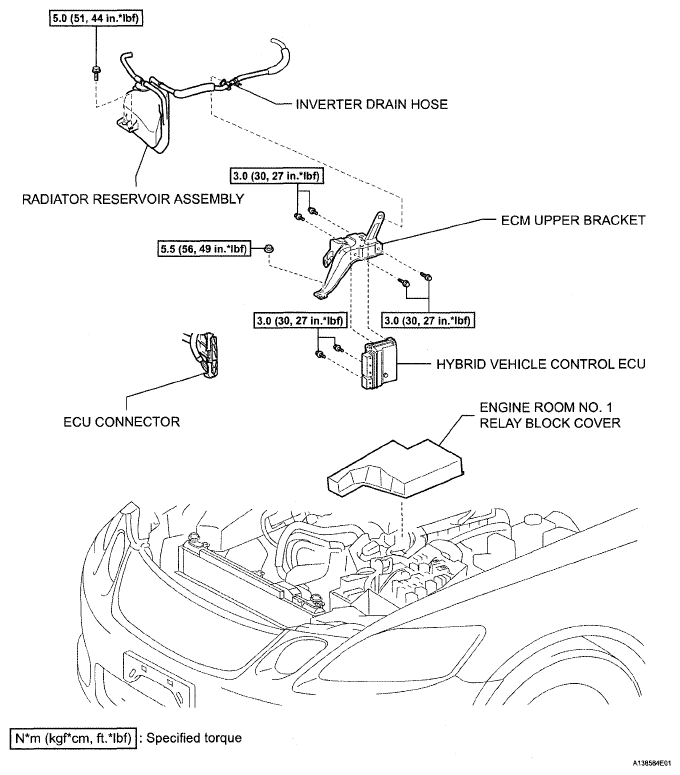

Fig 2: Identifying ECM Replacement Components (2 Of 3) With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

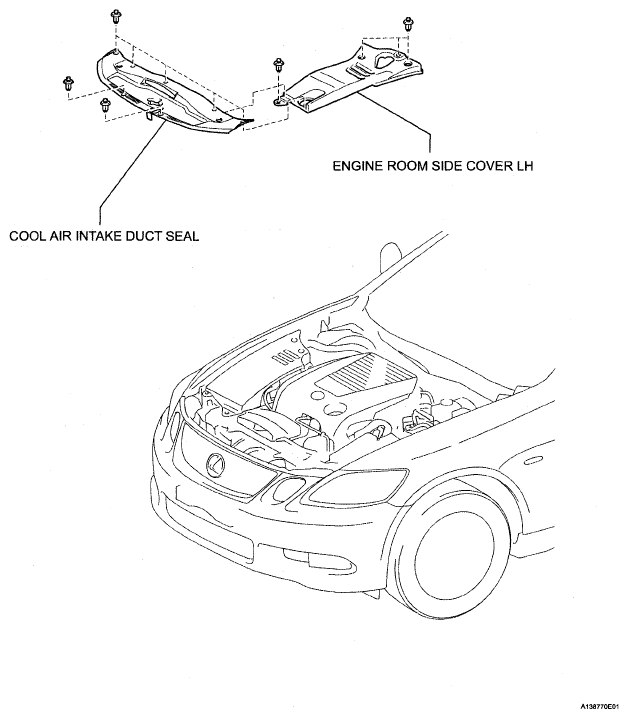

Fig 3: ECM Replacement Components (3 Of 3) With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
