Transmission Control Switch: Components

Fig 1: Identifying Transmission Control Switch Replacement Components (1 Of 4)
G05818803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

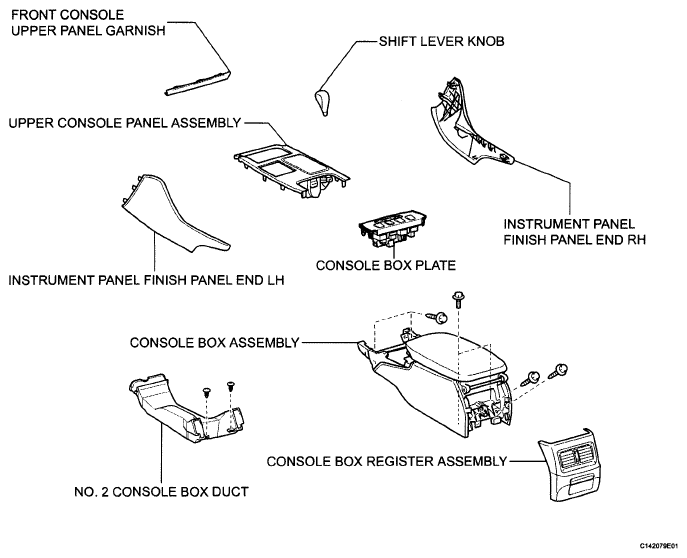

Fig 2: Identifying Transmission Replacement Control Switch Components (2 Of 4)
G05818804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Transmission Control Switch Replacement Components (3 Of 4)
G05818805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

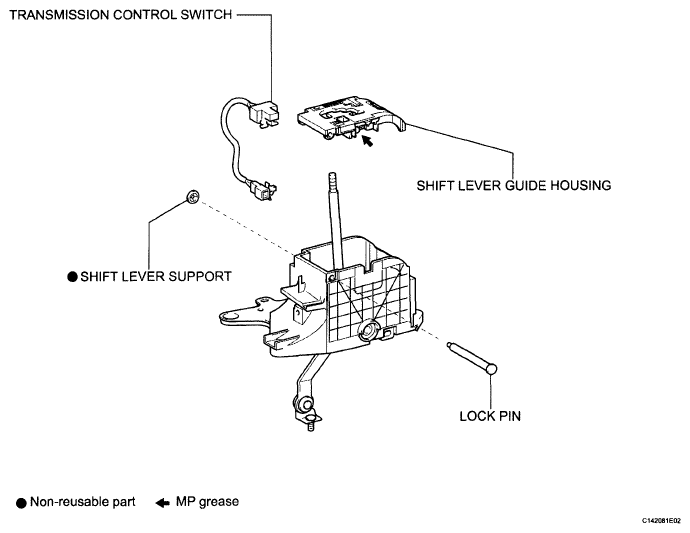

Fig 4: Identifying Transmission Control Switch Components (4 Of 4)
G05818806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
