Parts Location

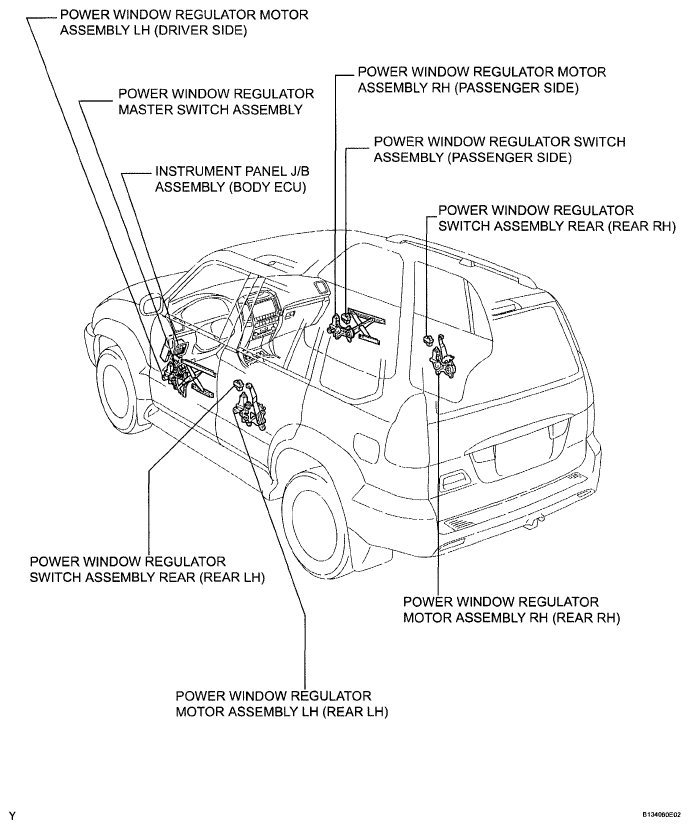

Fig 1: Identifying Power Window Control System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

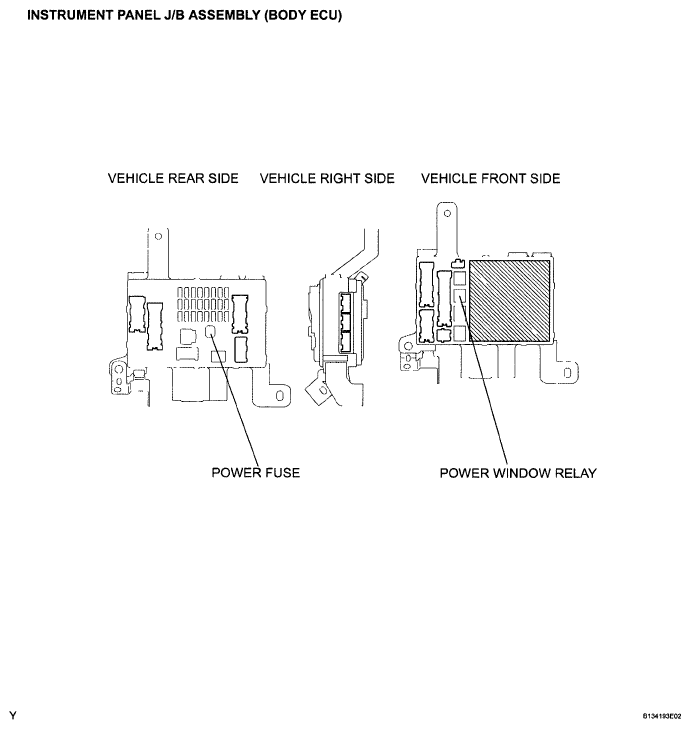

Fig 2: Identifying Instrument Panel J/B Assembly (Body ECU)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
