Electric Modulated Air Suspension: Notes

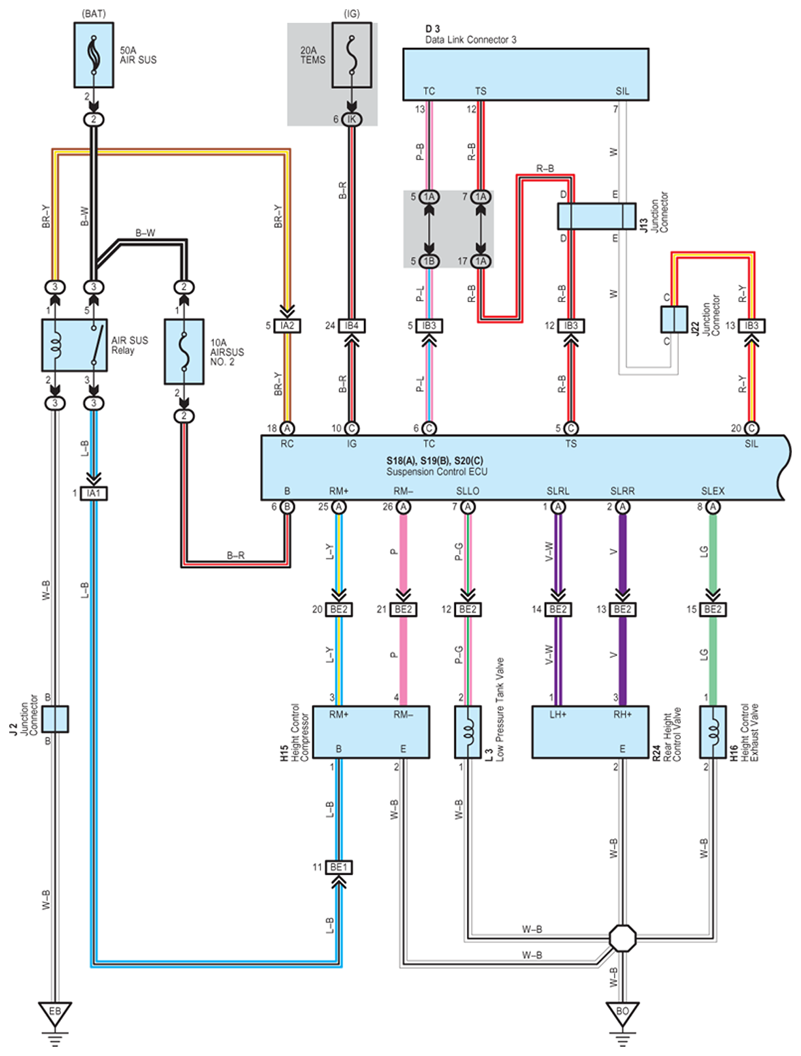

Fig 1: Electric Modulated Air Suspension - Circuit Diagram (1 Of 6)
G07613440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

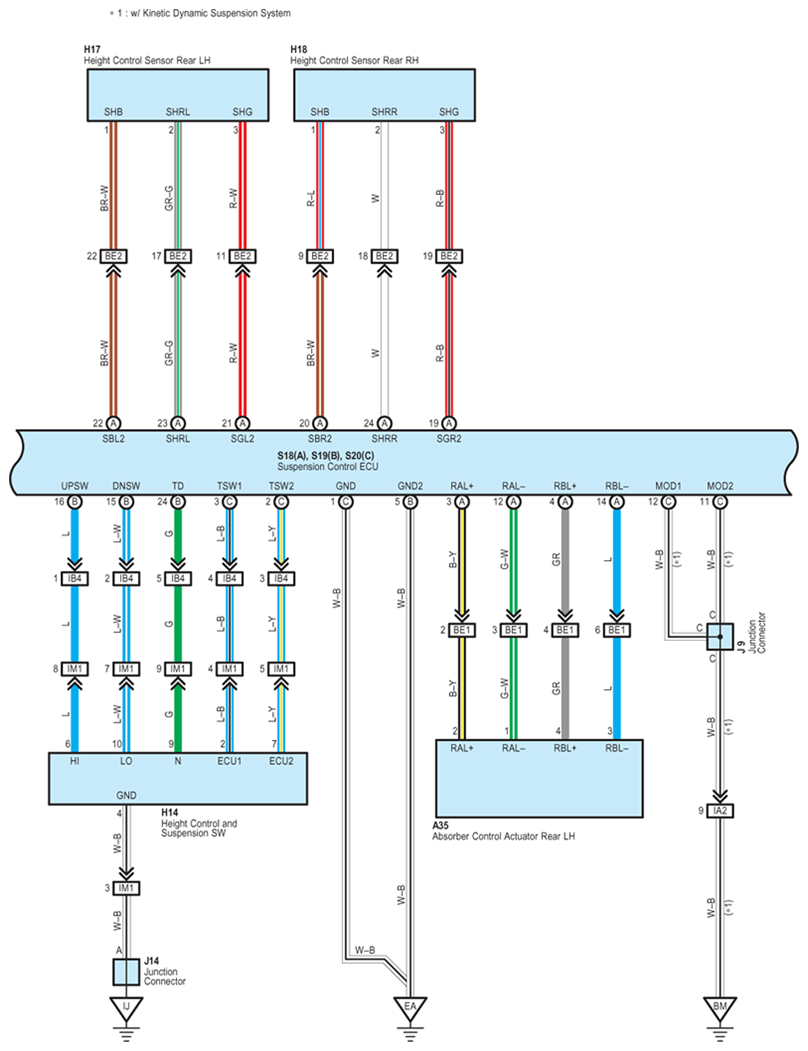

Fig 2: Electric Modulated Air Suspension - Circuit Diagram (2 Of 6)
G07613441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

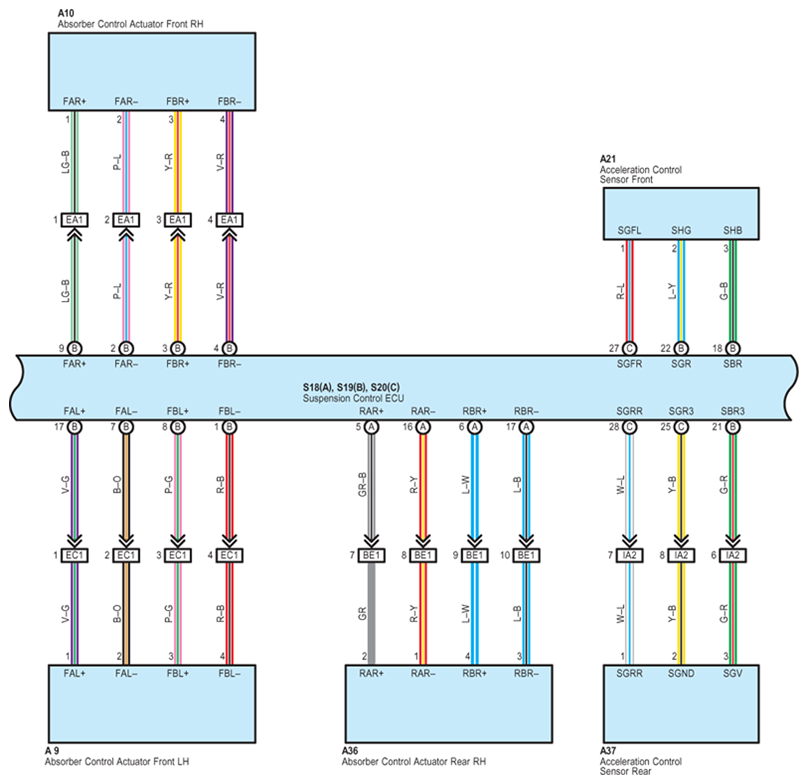

Fig 3: Electric Modulated Air Suspension - Circuit Diagram (3 Of 6)
G07613442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

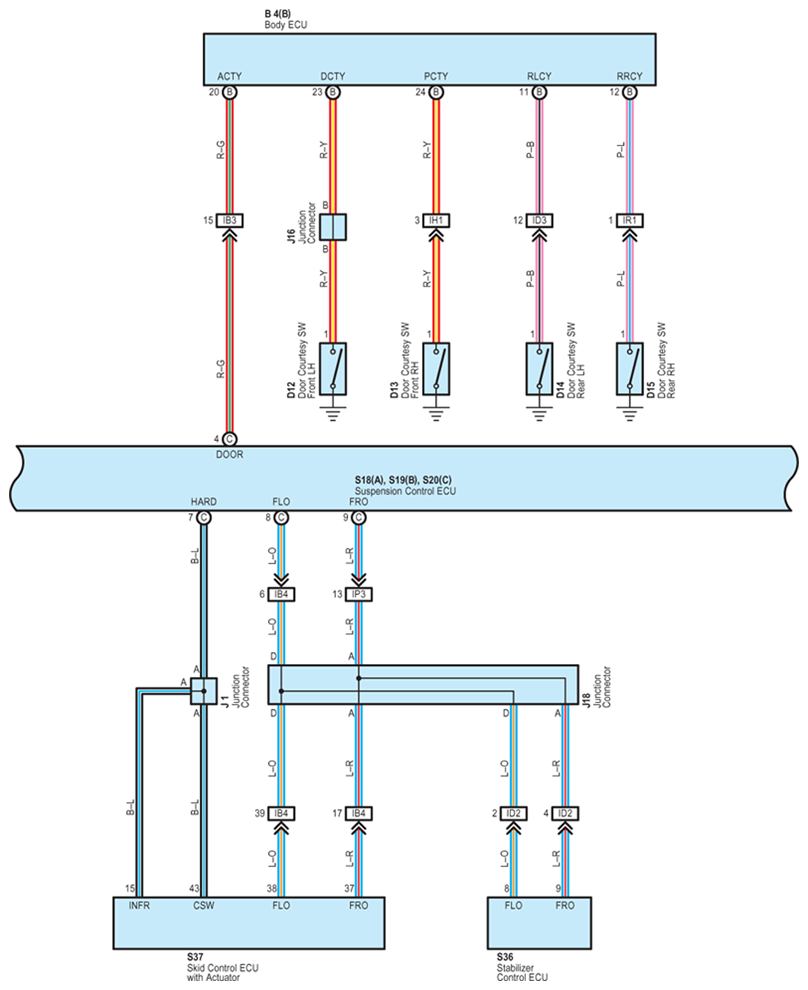

Fig 4: Electric Modulated Air Suspension - Circuit Diagram (4 Of 6)
G07613443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

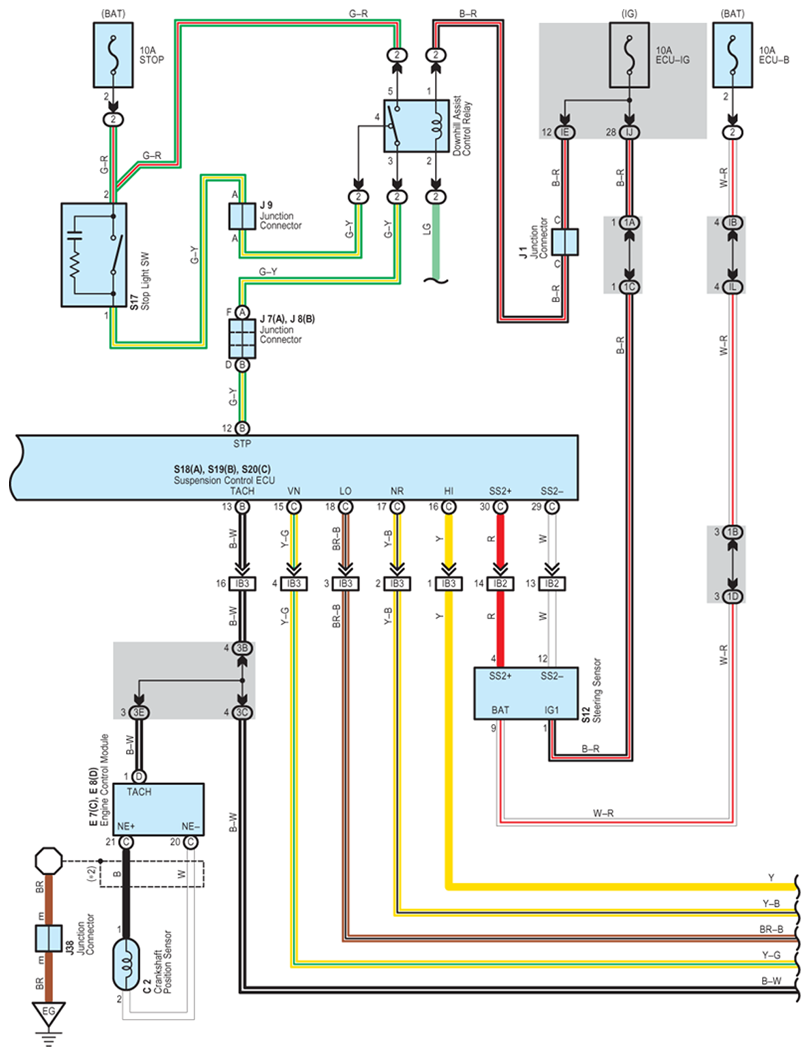

Fig 5: Electric Modulated Air Suspension - Circuit Diagram (5 Of 6)
G07613444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

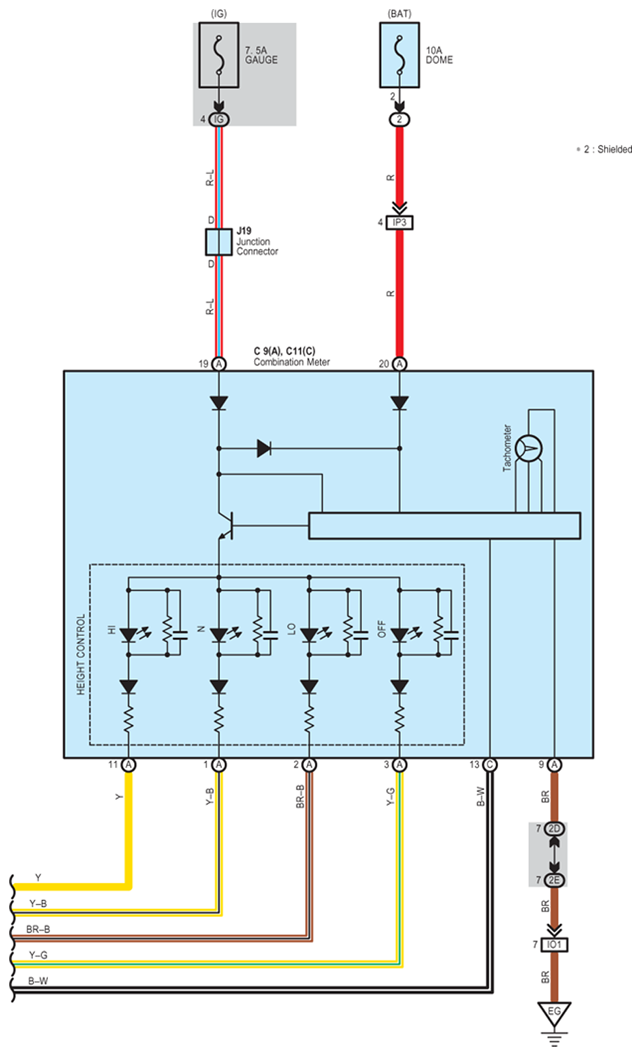

Fig 6: Electric Modulated Air Suspension - Circuit Diagram (6 Of 6)
G07613445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
