Fail-Safe Chart

CAN COMMUNICATION SYSTEM: FAIL-SAFE CHART

FAIL-SAFE CHART

1. FAIL-SAFE FUNCTION
(a) When communication fails in any of the CAN bus lines (communication lines), a fail-safe function(s) will operate. The fail-safe function that is specified for each system operates to prevent those systems from malfunctioning.

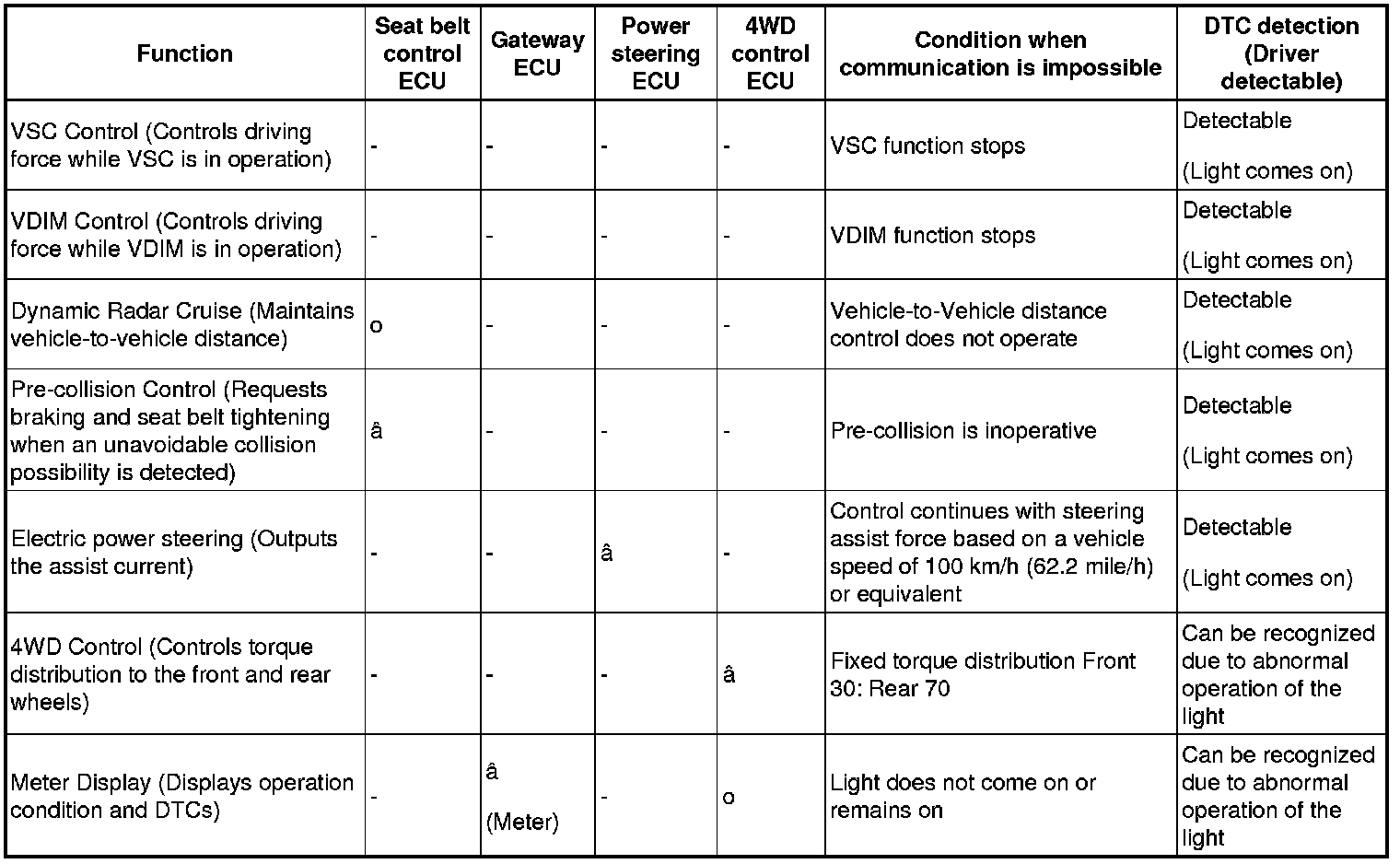

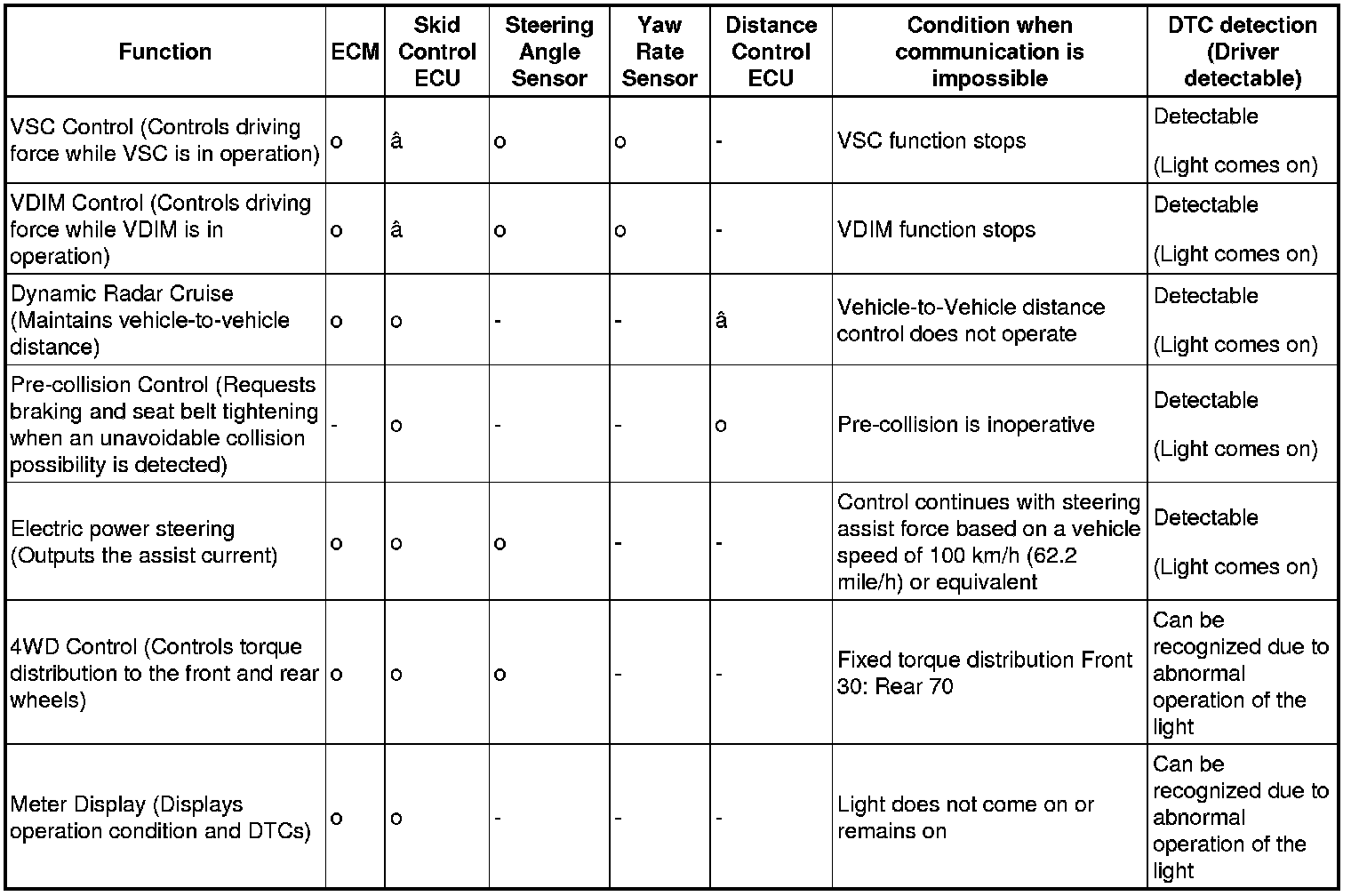

(b) Effects on each system when communication is impossible.










HINT:
- a: Control master
- o: System related
