Installation

ENGINE IMMOBILISER: ID CODE BOX:

INSTALLATION

1. INSTALL ID CODE BOX (IMMOBILISER CODE ECU)

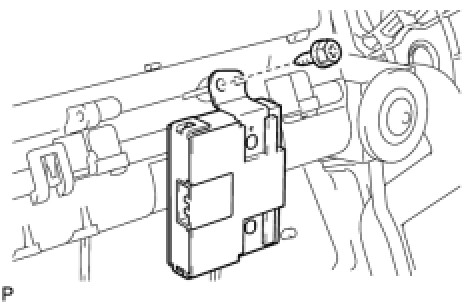

(a) Install the ID code box (immobiliser code ECU) with the screw.
2. INSTALL AIR CONDITIONER UNIT ASSEMBLY Installation
3. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY Installation
4. REGISTER ECU COMMUNICATION ID

NOTE: When replacing the ID code box (immobiliser code ECU), perform initialization Engine Immobilizer System.

5. REGISTER KEY

NOTE: When replacing the ID code box (immobiliser code ECU), perform initialization Engine Immobilizer System.
