Open in CAN Main Bus Line: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

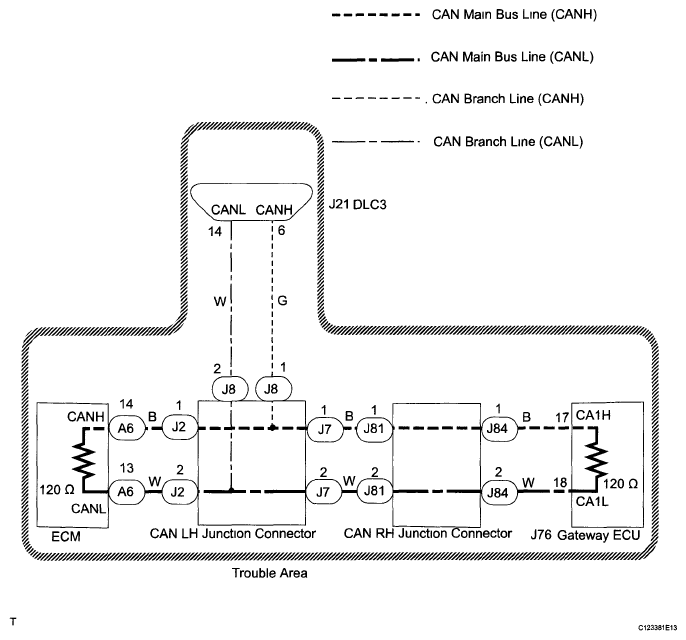

Fig 1: Connector Junction - Wiring Diagram
G05754156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
