DTC B1278 Combination Switch ECU Communication Stop: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

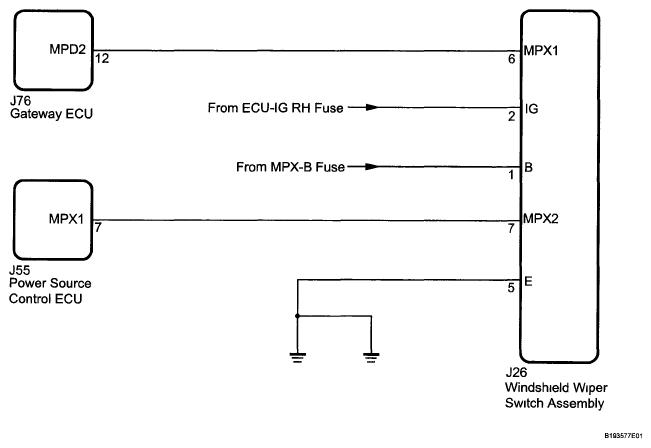

Fig 1: Windshield Wiper Switch Assembly And Gateway ECU - Wiring Diagram
G05754069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
