Front Door Lock: Components

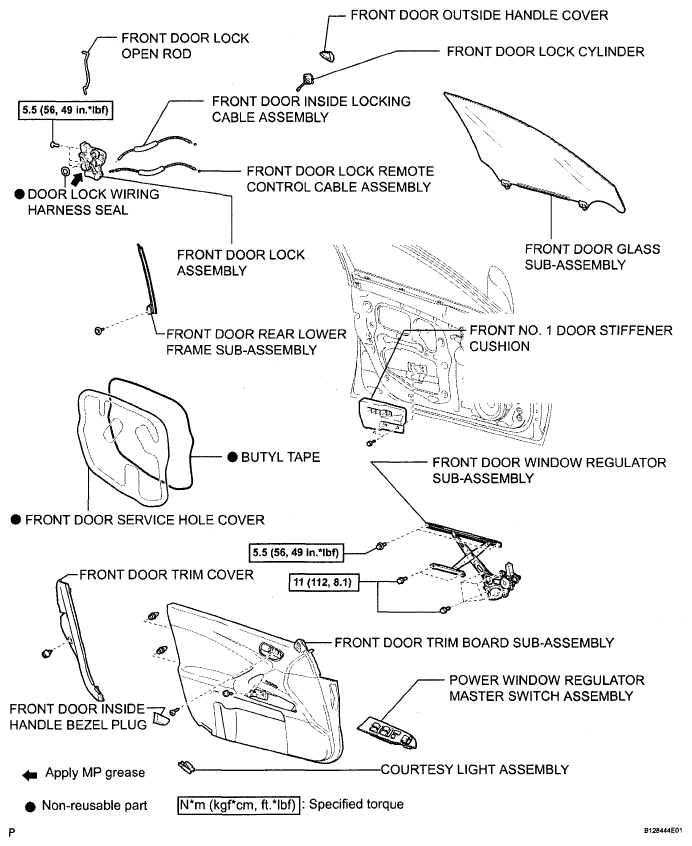

Fig 1: Front Door Lock Replacement Components With Torque Specifications
G05828064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
