Inspection Procedure

NOTE: Be sure to read DESCRIPTION before performing the following procedures.

CHECK FOR DTC OF OTHER COMPONENTS

Check if the component shown by the sub-code is displayed in the check result of the other components.

If "01-DC" is output for any other components, check if the same physical address is displayed.

HINT:

For the list of the components shown by sub-codes, refer to the table in step 2.

Result

DTC RESULT REFERENCE

Result	Proceed to
"01-DC" is output and the same physical address is displayed	A
"01-DC" is not output or the same physical address is not displayed	B

B: Go to step 4

A: Go to next step

IDENTIFY THE COMPONENT WHICH HAS STORED THIS CODE

Identify the component which has stored this code.

Component Table:

COMPONENT REFERENCE

HINT:

"NAVI" is the component which has stored this code in the example shown in the illustration.

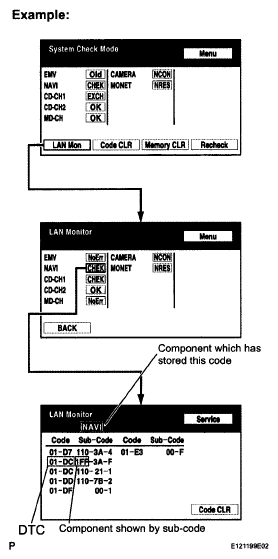

Fig 1: Screen Display - "LAN Mon" Switch

CHECK COMPONENT WHICH HAS STORED THIS CODE

Select the component which has stored this code.

Component Table:

COMPONENT REFERENCE

Component	Proceed to
Gateway ECU (G/W)	Gateway ECU communication error (See GATEWAY ECU COMMUNICATION ERROR )
Radio receiver (AUDIO H/U)	Radio receiver communication error (See RADIO RECEIVER COMMUNICATION ERROR )
Stereo component amplifier (DSP-AMP)	Stereo component amplifier communication error (See STEREO COMPONENT AMPLIFIER COMMUNICATION ERROR )
Navigation ECU (NAVI)	Navigation ECU communication error (See NAVIGATION ECU COMMUNICATION ERROR )
Multi-display (EMV)	Multi-display communication error (See MULTI-DISPLAY COMMUNICATION ERROR )

NEXT: END

CLEAR DTC
1. Clear the DTCs (See DTC CHECK/CLEAR ).
  HINT:

  If "01 - DC" is output for only one component, this may not indicate a malfunction.
RECHECK DTC
1. Recheck for DTCs and check if the same trouble occurs again.
  OK:

  Malfunction disappears.
NG: Go to step 3

OK: END
