Inspection Procedure

1. Disconnect the multi-display connector J52 and radio receiver J62 connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE REFERENCE



   Tester connection	Condition	Specified condition
   GND-SGD1	Always	Below 1 Ω
   NTSC - NTSC	Always	Below 1 Ω
   SLD - SGND	Always	Below 1 Ω
   NTSC - Body ground	Always	10 kΩ or higher
   GND - Body ground	Always	10 kΩ or higher

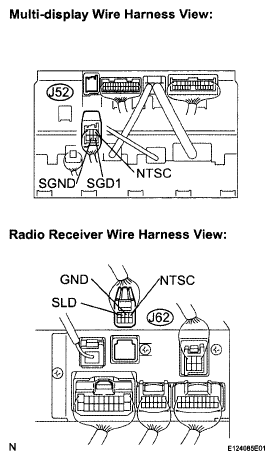

Fig 1: Identifying Multi-display Connector J52 And Radio Receiver J62 Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the radio receiver connector J62.
   Fig 2: Identifying Radio Receiver Connector J62

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the waveform according to the table below.

   OK

   TESTER CONNECTION CONDITION CHART



   Tester connection	Condition	Specified condition
   NTSC - Body ground	DVD display is ON	A waveform synchronized with display signals is output

   Fig 3: Identifying Waveform Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   The waveform pattern may differ from that shown in the illustration below due to differences in oscilloscope settings. A normal radio receiver operating condition can be determined if any waveform is output.

   Oscilloscope wave

   Terminal: NTSC - Body ground

   Setting: 200 mV/DIV. 10 μs/DIV.

   Condition: DVD display is on.

NG: REPLACE RADIO RECEIVER

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
