Inspection Procedure

1. Disconnect the overhead J/B connector R5 and multi-display connector J51.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE REFERENCE



   Tester connection	Condition	Specified condition
   ACC - MACC	Always	Below 1 Ω
   MI1+ - MIN+	Always	Below 1 Ω
   MIC- - MIN-	Always	Below 1 Ω
   TSW- - SGND	Always	Below 1 Ω
   ACC - Body ground	Always	10 kΩ or higher
   MI1+ - Body ground	Always	10 kΩ or higher
   MIC- - Body ground	Always	10 kΩ or higher

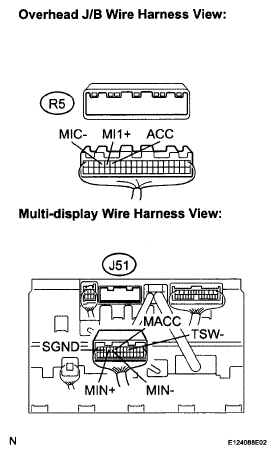

Fig 1: Identifying Overhead J/B Connector R5 And Multi-display Connector J51
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the multi-display connector J51.
2. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   VOLTAGE SPECIFICATION



   Tester connection	Condition	Specified condition
   MACC - Body ground	Engine switch on (ACC)	4 to 6 V

Fig 2: Identifying Multi-display Connector J51
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE MULTI-DISPLAY

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
