Microphone Circuit between Overhead Junction Block and Multi-display: Wiring Diagram

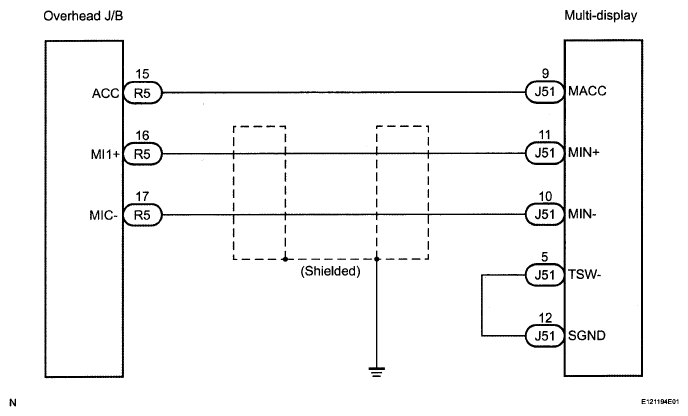

Fig 1: Overhead J/B And Multi-display - Wiring Diagram
G05832675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
